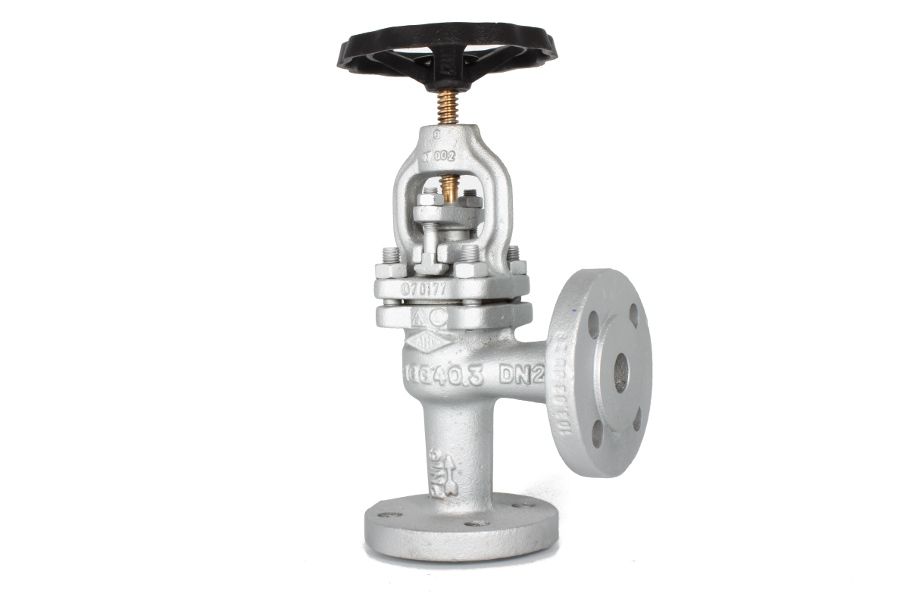

Flanged Globe Valve, 01-401
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Fix plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-401-15 | DN15 | PN16 | 90 | 185 | 95 | 4.00 |
| 01-401-20 | DN20 | PN16 | 95 | 185 | 105 | 4.50 |
| 01-401-25 | DN25 | PN16 | 100 | 200 | 115 | 5.60 |
| 01-401-32 | DN32 | PN16 | 105 | 200 | 140 | 6.60 |
| 01-401-40 | DN40 | PN16 | 115 | 215 | 150 | 9.20 |
| 01-401-50 | DN50 | PN16 | 125 | 215 | 165 | 11.60 |
| 01-401-65 | DN65 | PN16 | 145 | 245 | 185 | 17.00 |
| 01-401-80 | DN80 | PN16 | 155 | 280 | 200 | 22.60 |
| 01-401-100 | DN100 | PN16 | 175 | 320 | 220 | 33.00 |
| 01-401-125 | DN125 | PN16 | 200 | 360 | 250 | 46.00 |
| 01-401-150 | DN150 | PN16 | 225 | 415 | 285 | 68.00 |
| 01-401-200 | DN200 | PN16 | 275 | 495 | 340 | 100.00 |
| 01-401-250 | DN250 | PN16 | 325 | 575 | 395 | 204.00 |
| 01-401-300 | DN300 | PN16 | 375 | 655 | 445 | 270.00 |
