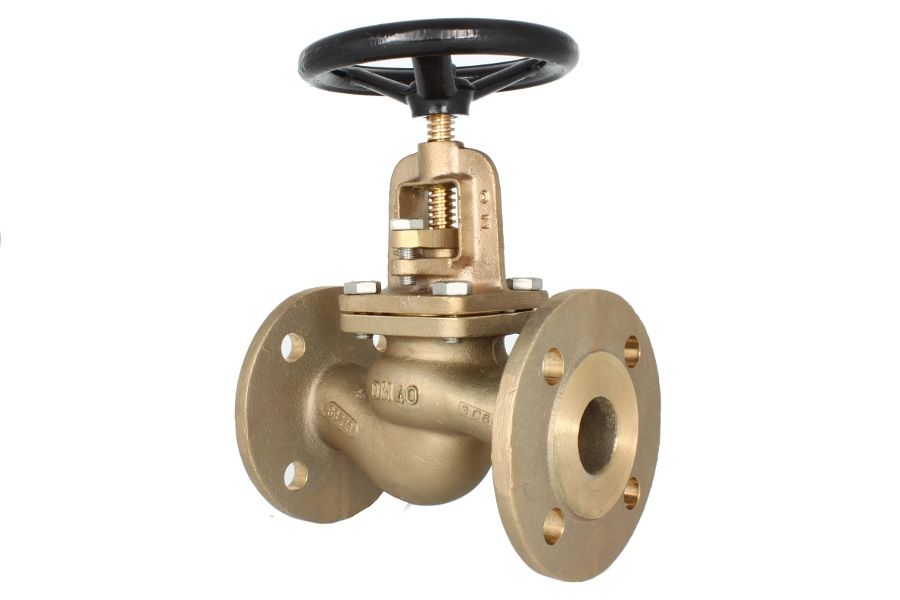

Flanged Globe Valve, 01-362
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Bronze |
| Inner Parts | Bronze |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Bolted bonnet
- Gland seal
- fix plug
- Rising stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-362-15 | DN15 | PN16 | 130 | 180 | 95 | 5.00 |
| 01-362-20 | DN20 | PN16 | 150 | 200 | 105 | 5.50 |
| 01-362-25 | DN25 | PN16 | 160 | 210 | 115 | 6.00 |
| 01-362-32 | DN32 | PN16 | 180 | 220 | 140 | 8.00 |
| 01-362-40 | DN40 | PN16 | 200 | 250 | 150 | 10.00 |
| 01-362-50 | DN50 | PN16 | 230 | 250 | 165 | 12.00 |
| 01-362-65 | DN65 | PN16 | 290 | 315 | 185 | 17.00 |
| 01-362-80 | DN80 | PN16 | 310 | 335 | 200 | 23.00 |
| 01-362-100 | DN100 | PN16 | 350 | 375 | 220 | 30.00 |
| 01-362-125 | DN125 | PN16 | 400 | 420 | 250 | 50.00 |
| 01-362-150 | DN150 | PN10 | 480 | 460 | 285 | 65.00 |
| 01-362-200 | DN200 | PN10 | 600 | 550 | 340 | 110.00 |
| 01-362-250 | DN250 | PN06 | 730 | 670 | 395 | 165.00 |
| 01-362-300 | DN300 | PN06 | 850 | 750 | 445 | 295.00 |
