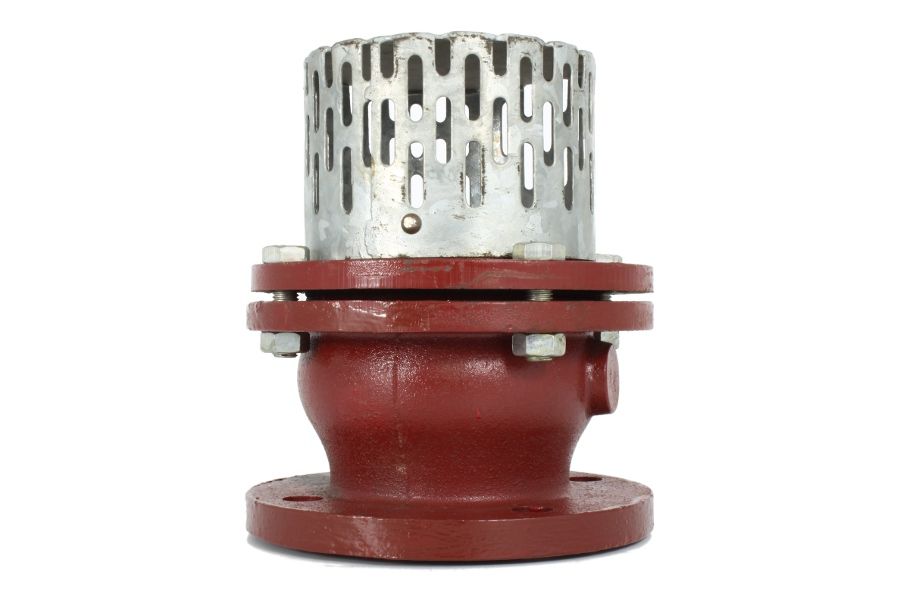

Flanged Foot Valve, 01-655
Additional information
| Material Body | Cast iron |
|---|---|
| Inner Parts | Brass |
| Temperature Range | -10°C to 120°C |
- Stainless steel strainer
| Art. Nr. | DN | PN | H | ØD | kg |
| 01-655-32 | DN32 | PN16 | 165 | 150 | 8.00 |
| 01-655-40 | DN40 | PN16 | 180 | 155 | 10.00 |
| 01-655-50 | DN50 | PN16 | 195 | 160 | 14.00 |
| 01-655-65 | DN65 | PN16 | 215 | 210 | 19.00 |
| 01-655-80 | DN80 | PN16 | 230 | 210 | 28.00 |
| 01-655-100 | DN100 | PN16 | 300 | 220 | 35.00 |
| 01-655-125 | DN125 | PN16 | 365 | 250 | 53.00 |
| 01-655-150 | DN150 | PN16 | 430 | 285 | 65.00 |
| 01-655-200 | DN200 | PN16 | 530 | 340 | 108.00 |
| 01-655-250 | DN250 | PN16 | 650 | 420 | 138.00 |
| 01-655-300 | DN300 | PN16 | 745 | 490 | 247.00 |
