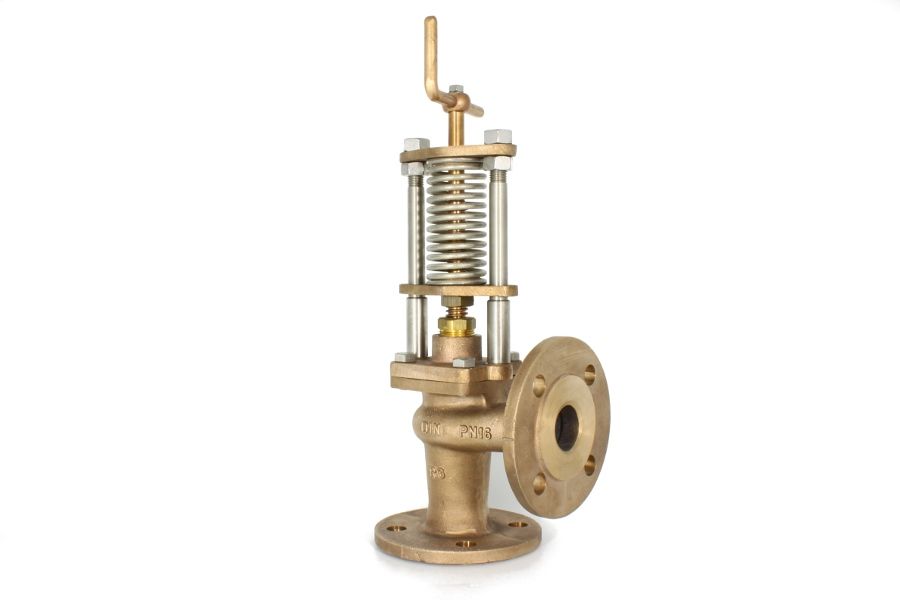

Flanged Discharge Valve, 01-517
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- External spring adjustable 0,1 – 0,5 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-517-15 | DN15 | PN16 | 90 | 300 | 95 | 4.80 |
| 01-517-20 | DN20 | PN16 | 95 | 300 | 105 | 5.00 |
| 01-517-25 | DN25 | PN16 | 100 | 340 | 115 | 6.00 |
| 01-517-32 | DN32 | PN16 | 105 | 360 | 140 | 8.00 |
| 01-517-40 | DN40 | PN16 | 115 | 380 | 150 | 10.00 |
| 01-517-50 | DN50 | PN16 | 125 | 390 | 165 | 12.50 |
| 01-517-65 | DN65 | PN16 | 145 | 400 | 185 | 18.00 |
| 01-517-80 | DN80 | PN16 | 155 | 420 | 200 | 22.00 |
| 01-517-100 | DN100 | PN16 | 175 | 470 | 220 | 27.00 |
| 01-517-125 | DN125 | PN16 | 200 | 490 | 250 | 43.00 |
| 01-517-150 | DN150 | PN16 | 225 | 540 | 285 | 58.00 |
| 01-517-200 | DN200 | PN16 | 275 | 600 | 340 | 100.00 |
| 01-517-250 | DN250 | PN16 | 325 | 710 | 395 | 160.00 |
| 01-517-300 | DN300 | PN16 | 375 | 780 | 445 | 235.00 |
