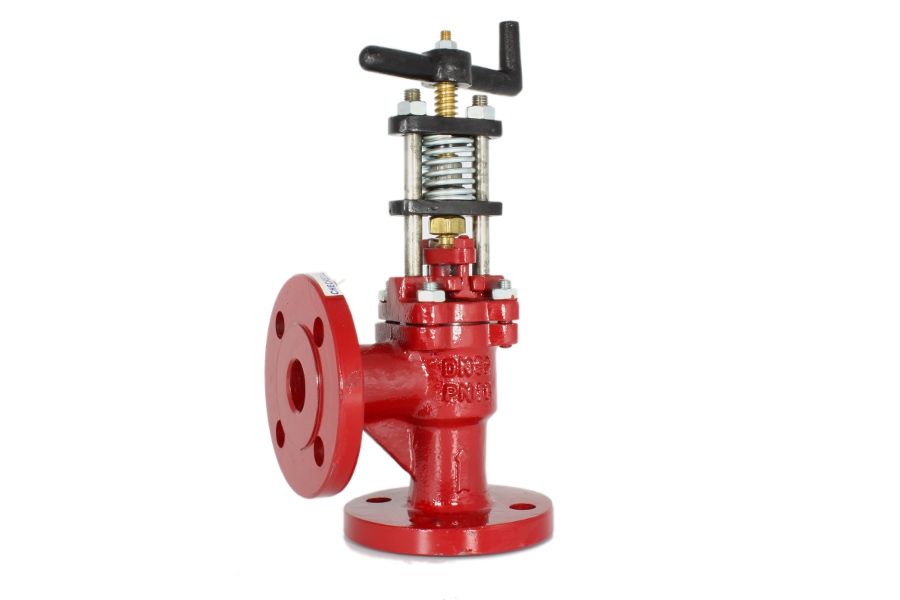

Flanged Discharge Valve, 01-516
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- External spring adjustable 0,1 – 0,5 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-516-15 | DN15 | PN16 | 90 | 250 | 95 | 7.00 |
| 01-516-20 | DN20 | PN16 | 95 | 250 | 105 | 7.00 |
| 01-516-25 | DN25 | PN16 | 100 | 265 | 115 | 7.00 |
| 01-516-32 | DN32 | PN16 | 105 | 285 | 140 | 9.00 |
| 01-516-40 | DN40 | PN16 | 115 | 320 | 150 | 10.00 |
| 01-516-50 | DN50 | PN16 | 125 | 380 | 165 | 14.00 |
| 01-516-65 | DN65 | PN16 | 145 | 410 | 185 | 18.00 |
| 01-516-80 | DN80 | PN16 | 155 | 440 | 200 | 30.00 |
| 01-516-100 | DN100 | PN16 | 175 | 465 | 220 | 35.00 |
| 01-516-125 | DN125 | PN16 | 200 | 550 | 250 | 52.00 |
| 01-516-150 | DN150 | PN16 | 225 | 595 | 285 | 70.00 |
| 01-516-200 | DN200 | PN16 | 275 | 765 | 340 | 115.00 |
| 01-516-250 | DN250 | PN16 | 325 | 965 | 395 | 200.00 |
| 01-516-300 | DN300 | PN16 | 375 | 980 | 445 | 260.00 |
