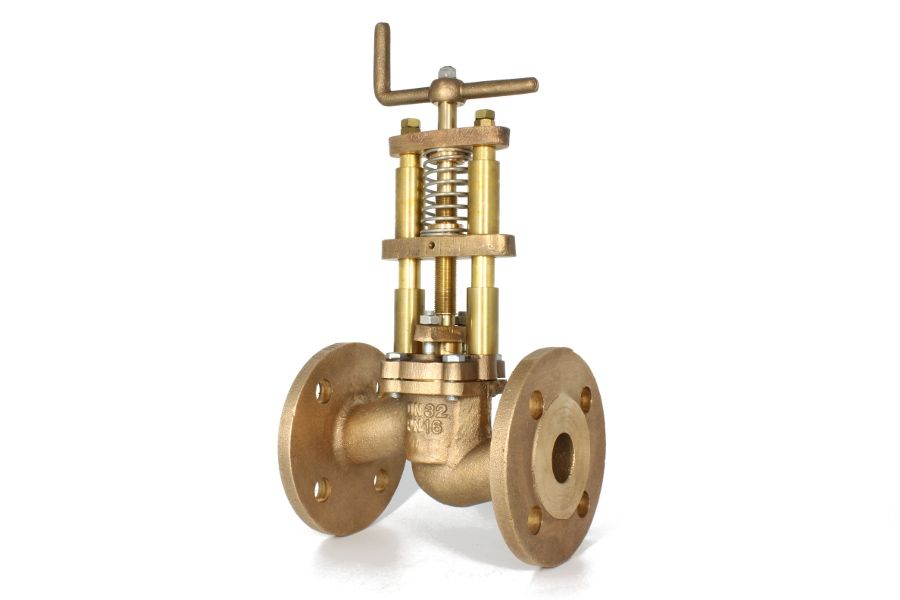

Flanged Discharge Valve, 01-512
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- External spring adjustable 0,1 – 0,5 bar
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-512-15 | DN15 | PN16 | 130 | 290 | 95 | 6.00 |
| 01-512-20 | DN20 | PN16 | 150 | 290 | 105 | 6.50 |
| 01-512-25 | DN25 | PN16 | 160 | 330 | 115 | 7.00 |
| 01-512-32 | DN32 | PN16 | 180 | 340 | 140 | 9.00 |
| 01-512-40 | DN40 | PN16 | 200 | 360 | 150 | 11.00 |
| 01-512-50 | DN50 | PN16 | 230 | 390 | 165 | 13.50 |
| 01-512-65 | DN65 | PN16 | 290 | 410 | 185 | 19.00 |
| 01-512-80 | DN80 | PN16 | 310 | 450 | 200 | 25.00 |
| 01-512-100 | DN100 | PN16 | 350 | 490 | 220 | 32.00 |
| 01-512-125 | DN125 | PN16 | 400 | 540 | 250 | 53.00 |
| 01-512-150 | DN150 | PN16 | 480 | 590 | 285 | 66.00 |
| 01-512-200 | DN200 | PN16 | 600 | 700 | 340 | 115.00 |
| 01-512-250 | DN250 | PN16 | 730 | 820 | 395 | 170.00 |
| 01-512-300 | DN300 | PN16 | 850 | 940 | 445 | 305.00 |
