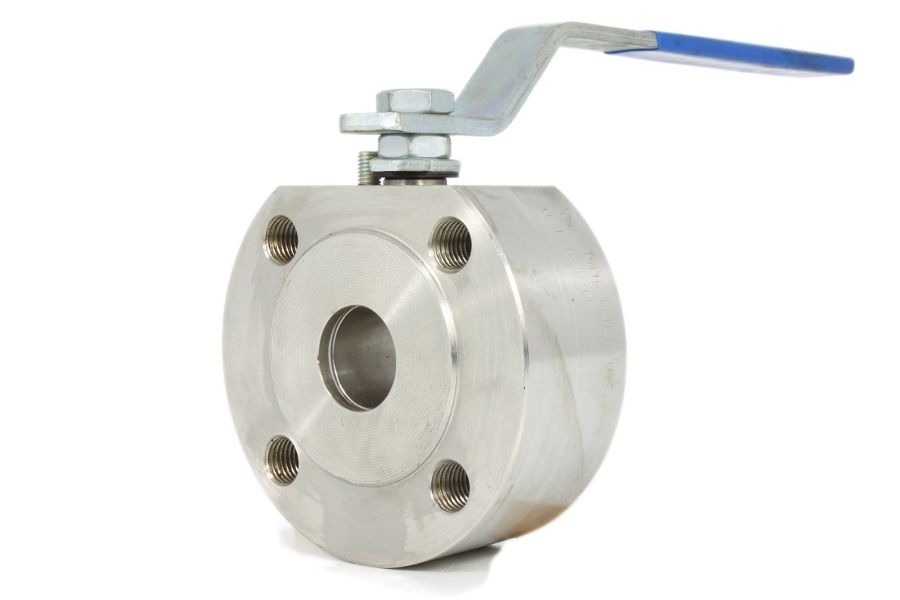

Flanged Compact Ball Valve, 03-312
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Stainless steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -20°C to 200°C |
- Full bore
- Top flange acc. to ISO 5211
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-312-15 | DN15 | 36 | 70 | 88 | 1.20 | |
| 03-312-20 | DN20 | 38 | 70 | 98 | 1.40 | |
| 03-312-25 | DN25 | 43 | 80 | 108 | 1.90 | |
| 03-312-32 | DN32 | 51 | 87 | 128 | 2.90 | |
| 03-312-40 | DN40 | 63 | 102 | 150 | 4.40 | |
| 03-312-50 | DN50 | 70 | 108 | 165 | 5.60 | |
| 03-312-65 | DN65 | 107 | 143 | 186 | 9.90 | |
| 03-312-80 | DN80 | 120 | 152 | 200 | 12.60 | |
| 03-312-100 | DN100 | 152 | 168 | 220 | 19.70 | |
| 03-312-125 | DN125 | 180 | 183 | 250 | 28.60 |
