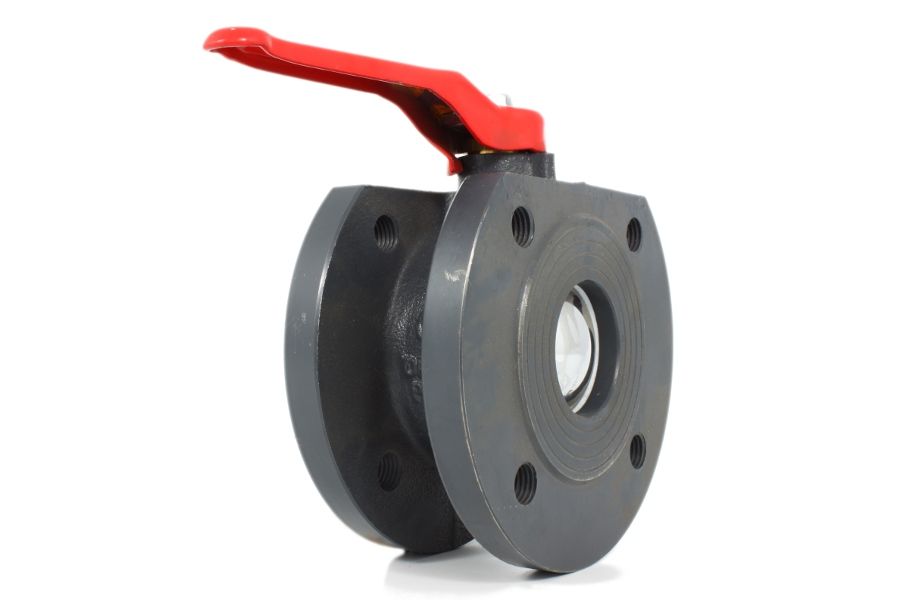

Flanged Compact Ball Valve, 03-310
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Brass chrome plated |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 150°C |
- Full bore
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-310-20 | DN20 | PN16 | 40 | 82 | 105 | 1.70 |
| 03-310-25 | DN25 | PN16 | 50 | 92 | 115 | 2.20 |
| 03-310-32 | DN32 | PN16 | 55 | 104 | 140 | 3.50 |
| 03-310-40 | DN40 | PN16 | 62 | 105 | 150 | 4.30 |
| 03-310-50 | DN50 | PN16 | 72 | 112 | 165 | 5.50 |
| 03-310-65 | DN65 | PN16 | 94 | 144 | 185 | 7.20 |
| 03-310-80 | DN80 | PN16 | 118 | 154 | 200 | 10.50 |
| 03-310-100 | DN100 | PN16 | 140 | 144 | 220 | 12.00 |
