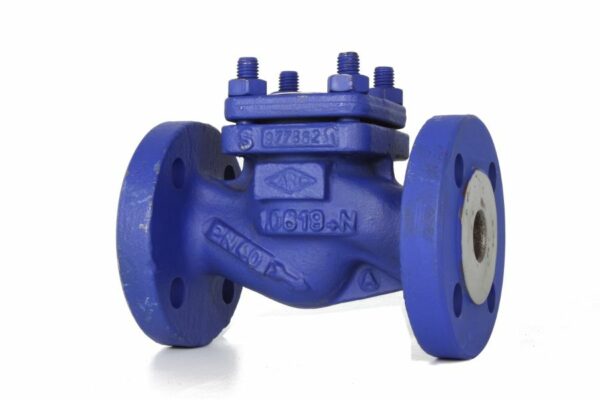

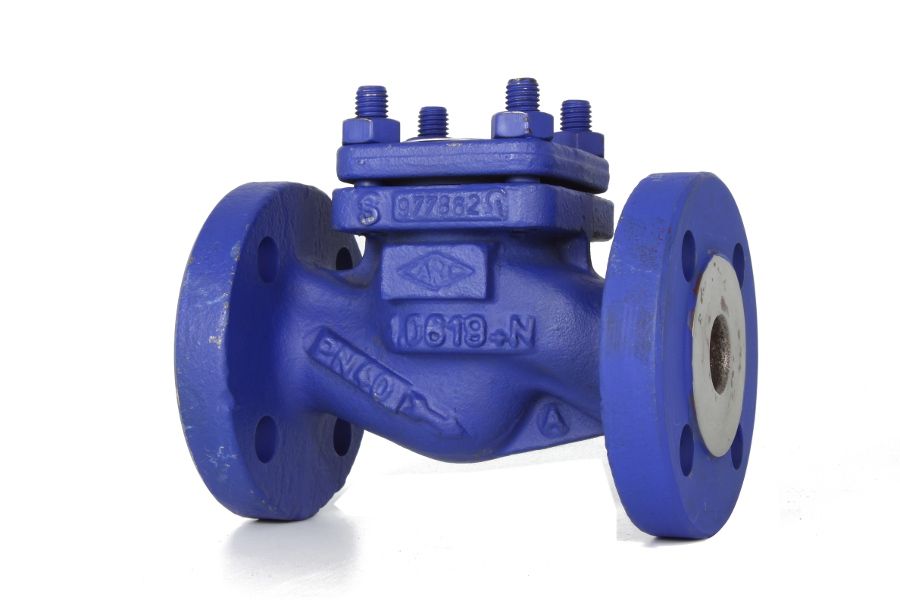

Flanged Check Valve, 01-710
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 350°C |
- Spring loaded
- Horizontal or vertical installation
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-710-15 | DN15 | PN16 | 130 | 70 | 95 | 3.50 |
| 01-710-20 | DN20 | PN16 | 150 | 70 | 105 | 4.00 |
| 01-710-25 | DN25 | PN16 | 160 | 80 | 115 | 5.00 |
| 01-710-32 | DN32 | PN16 | 180 | 80 | 140 | 6.00 |
| 01-710-40 | DN40 | PN16 | 200 | 85 | 150 | 8.00 |
| 01-710-50 | DN50 | PN16 | 230 | 95 | 165 | 11.00 |
| 01-710-65 | DN65 | PN16 | 290 | 110 | 185 | 16.00 |
| 01-710-80 | DN80 | PN16 | 310 | 130 | 200 | 21.00 |
| 01-710-100 | DN100 | PN16 | 350 | 155 | 220 | 31.00 |
| 01-710-125 | DN125 | PN16 | 400 | 165 | 250 | 49.00 |
| 01-710-150 | DN150 | PN16 | 480 | 215 | 285 | 69.00 |
| 01-710-200 | DN200 | PN16 | 600 | 285 | 340 | 132.00 |
| 01-710-250 | DN250 | PN16 | 730 | 325 | 395 | 198.00 |
| 01-710-300 | DN300 | PN16 | 850 | 365 | 445 | 278.00 |
