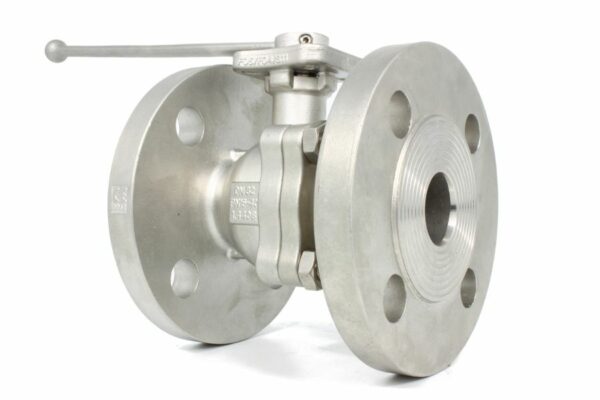

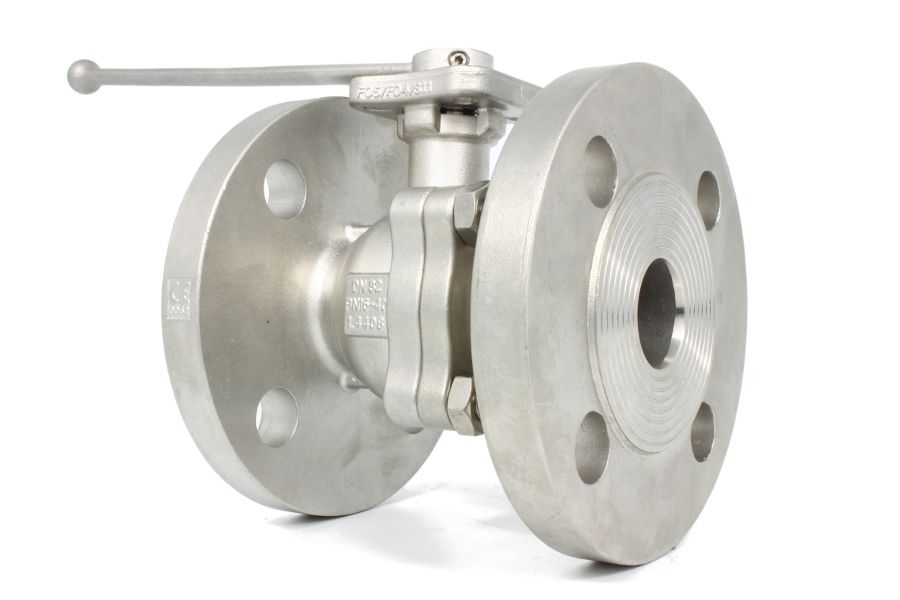

Flanged Ball Valve, 03-511
Additional information
| Connection Type | Flanges acc. to DIN PN16, Length acc. to DIN 3202 F4/F5, Top flange acc. to ISO 5211 |
|---|---|
| Material Body | Steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 200°C |
- Full bore
- Bipartite body
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-511-15 | DN15 | PN16 | 47 | 79,5 | 95 | 1.30 |
| 03-511-20 | DN20 | PN16 | 50,5 | 82 | 105 | 2.00 |
| 03-511-25 | DN25 | PN16 | 52,5 | 99 | 115 | 2.80 |
| 03-511-32 | DN32 | PN16 | 55,5 | 103,5 | 140 | 4.20 |
| 03-511-40 | DN40 | PN16 | 60 | 128 | 150 | 5.80 |
| 03-511-50 | DN50 | PN16 | 65 | 137 | 165 | 8.50 |
| 03-511-65 | DN65 | PN16 | 73,5 | 157 | 185 | 11.70 |
| 03-511-80 | DN80 | PN16 | 78 | 166 | 200 | 13.30 |
| 03-511-100 | DN100 | PN16 | 80 | 188,5 | 220 | 31.00 |
| 03-511-125 | DN125 | PN16 | – | – | 250 | – |
| 03-511-150 | DN150 | PN16 | – | – | 285 | – |
| 03-511-200 | DN200 | PN16 | – | – | 340 | – |
