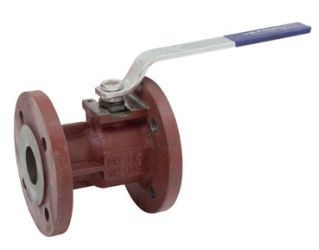

Flanged Ball Valve, 03-411
Additional information
| Connection Type | Flanges acc. to DIN PN16, Length acc. to DIN3202-F4 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Brass |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 90°C |
- Full bore
- Length acc. to DIN3202-F4
- DIN DVGW-approval
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-411-20 | DN20 | PN16 | 120 | 73 | 105 | 2.70 |
| 03-411-25 | DN25 | PN16 | 125 | 77 | 115 | 3.60 |
| 03-411-32 | DN32 | PN16 | 130 | 82 | 140 | 4.80 |
| 03-411-40 | DN40 | PN16 | 140 | 92 | 150 | 6.20 |
| 03-411-50 | DN50 | PN16 | 150 | 99 | 165 | 9.00 |
| 03-411-65 | DN65 | PN16 | 170 | 121 | 185 | 12.20 |
| 03-411-80 | DN80 | PN16 | 180 | 130 | 200 | 15.50 |
| 03-411-100 | DN100 | PN16 | 190 | 144 | 220 | 20.00 |
| 03-411-125 | DN125 | PN16 | 200 | 185 | 250 | 28.00 |
| 03-411-150 | DN150 | PN16 | 210 | 204 | 285 | 38.50 |
