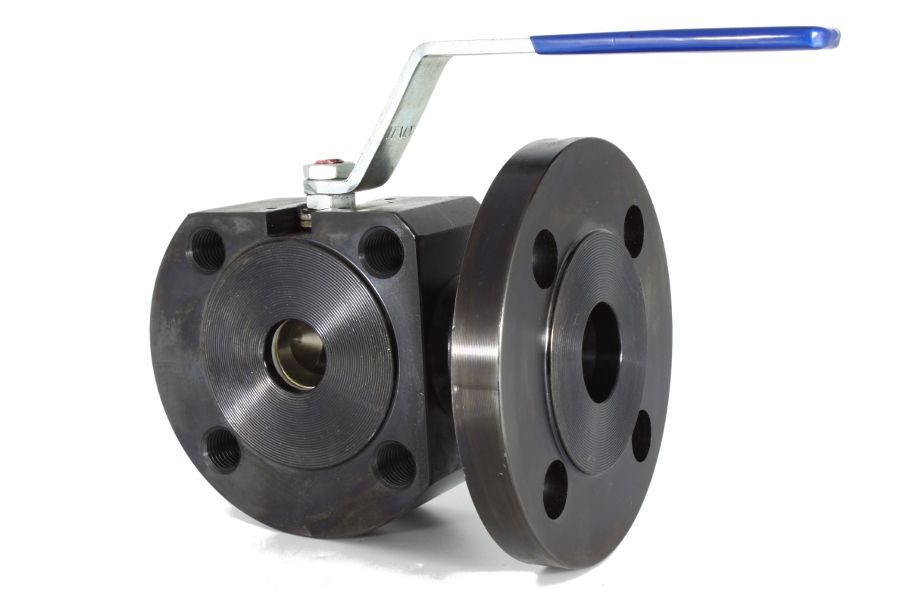

Flanged 3-way Compact Ball Valve, 03-810
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN16, Top flange acc. to ISO 5211 |
|---|---|
| Material Body | Steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 200°C |
- Reduced bore
- L-port
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-810-15 | DN15 | PN16 | 40 | 47 | 95 | 2.23 |
| 03-810-20 | DN20 | PN16 | 40 | 49,5 | 105 | 2.86 |
| 03-810-25 | DN25 | PN16 | 46 | 59 | 115 | 3.89 |
| 03-810-32 | DN32 | PN16 | 58 | 64 | 140 | 6.21 |
| 03-810-40 | DN40 | PN16 | 71 | 78 | 150 | 8.50 |
| 03-810-50 | DN50 | PN16 | 82 | 85 | 165 | 12.27 |
| 03-810-65 | DN65 | PN16 | 106 | 104,5 | 185 | 19.10 |
| 03-810-80 | DN80 | PN16 | 122 | 113 | 200 | 24.34 |
| 03-810-100 | DN100 | PN16 | 152 | 136 | 220 | 38.45 |
