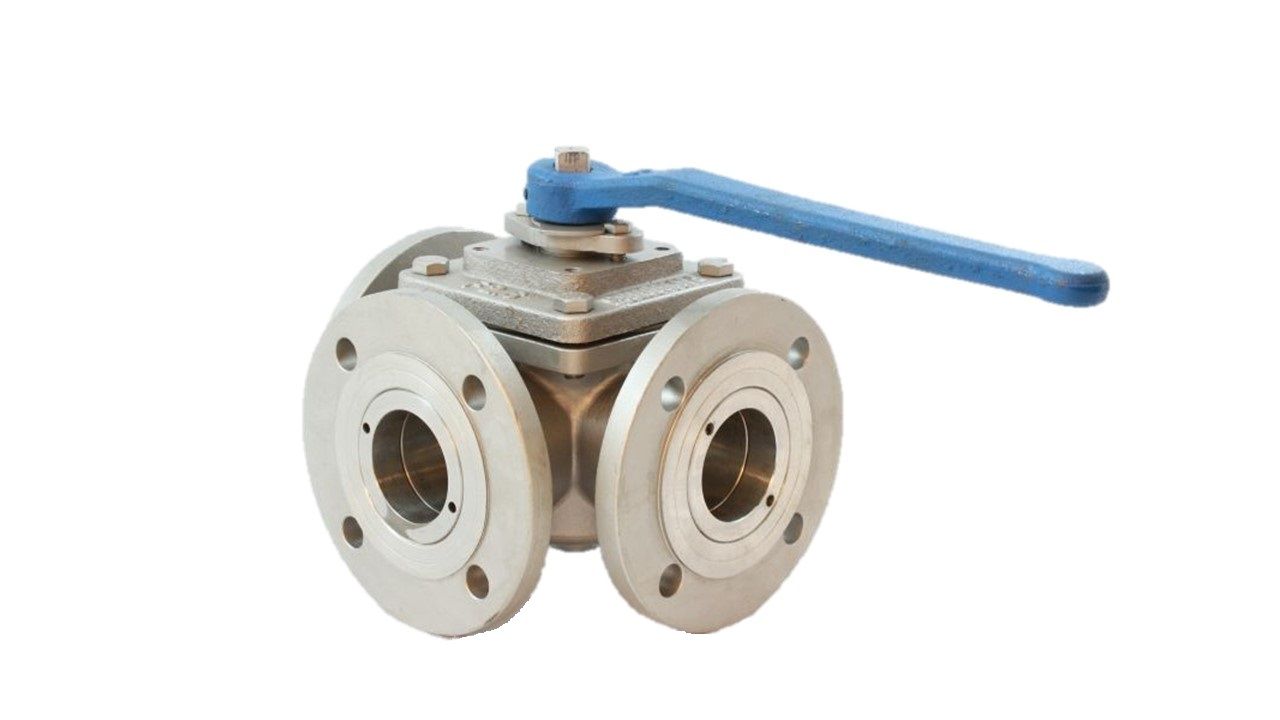

Flanged 3-way Ball Valve, 03-730
Additional information
| Connection Type | Flanges acc. to DIN PN16 |
|---|---|
| Material Body | Steel |
| Inner Parts | Stainless steel |
| Seat Sealing | PTFE |
| Temperature Range | -10°C to 180°C |
- L-port
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 03-730-25 | DN25 | PN16 | 180 | 103 | 115 | 9.50 |
| 03-730-40 | DN40 | PN16 | 190 | 133 | 150 | 13.00 |
| 03-730-50 | DN50 | PN16 | 220 | 136 | 165 | 17.00 |
| 03-730-65 | DN65 | PN16 | 250 | 146 | 185 | 27.00 |
| 03-730-80 | DN80 | PN16 | 260 | 156 | 200 | 29.00 |
| 03-730-100 | DN100 | PN16 | 340 | 172 | 220 | 45.00 |
