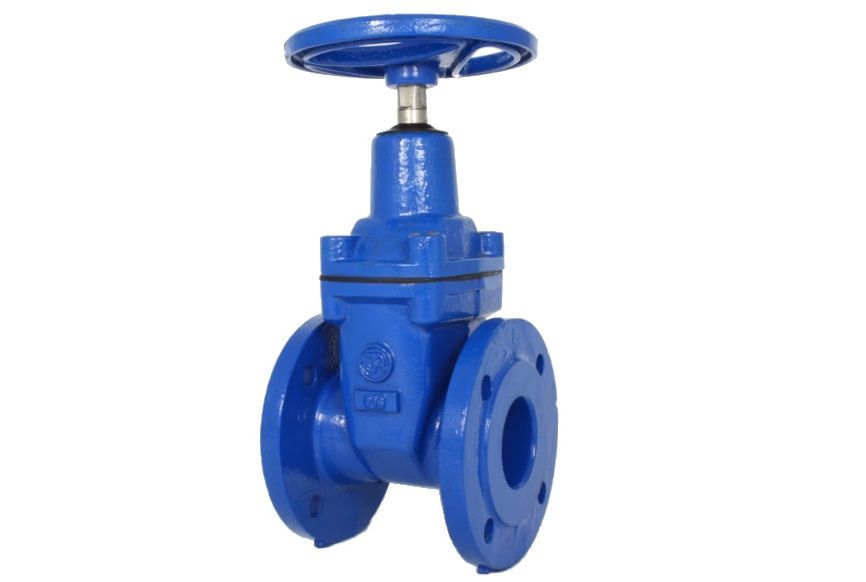

Flange wedge gate valve, 02-048
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN16 |
|---|---|
| Material Body | NCI/epoxy |
| Inner Parts | Stainless steel |
| Seat Sealing | NBR |
| Temperature Range | 0°C to 70°C |
- Internal stem
- Soft sealing
| Art. Nr. | DN | PN | L | H | kg |
| 02-048-40 | DN40 | PN16 | 140 | 260 | 14.00 |
| 02-048-50 | DN50 | PN16 | 150 | 290 | 16.00 |
| 02-048-65 | DN65 | PN16 | 170 | 300 | 20.00 |
| 02-048-80 | DN80 | PN16 | 180 | 350 | 26.00 |
| 02-048-100 | DN100 | PN16 | 190 | 390 | 34.00 |
| 02-048-125 | DN125 | PN16 | 200 | 465 | 46.00 |
| 02-048-150 | DN150 | PN16 | 210 | 490 | 60.00 |
| 02-048-200 | DN200 | PN16 | 230 | 520 | 90.00 |
| 02-048-250 | DN250 | PN16 | 250 | 740 | 156.00 |
| 02-048-300 | DN300 | PN16 | 270 | 830 | 198.00 |
