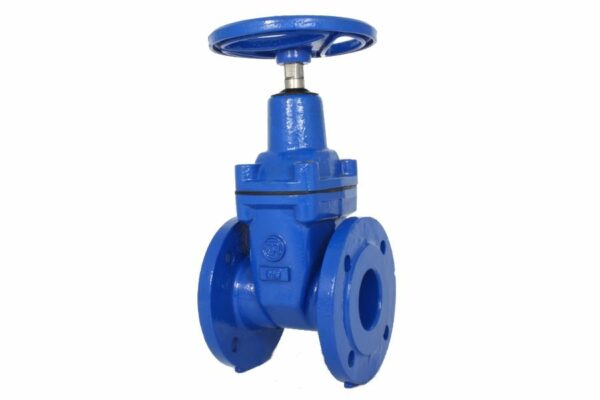

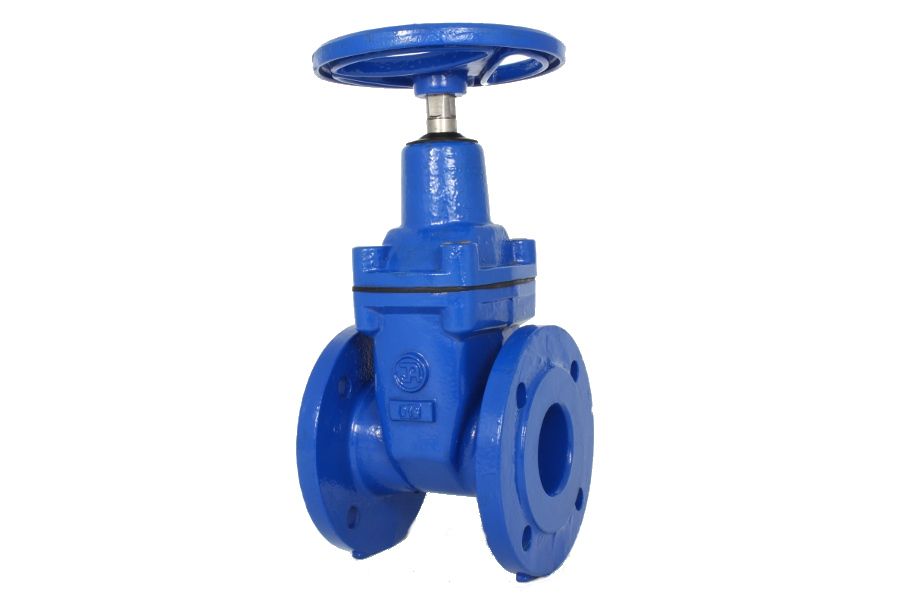

Flange wedge gate valve, 02-047
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10 |
|---|---|
| Material Body | CI/EPDM coated |
| Inner Parts | Stainless steel |
| Seat Sealing | EPDM |
| Temperature Range | 0°C to 70°C |
- Internal stem
- Soft sealing
| Art. Nr. | DN | PN | L | H | kg |
| 02-047-40 | DN40 | PN16 | 140 | 233 | 9.00 |
| 02-047-50 | DN50 | PN16 | 150 | 240 | 9.70 |
| 02-047-65 | DN65 | PN16 | 170 | 277 | 11.70 |
| 02-047-80 | DN80 | PN16 | 180 | 300 | 18.00 |
| 02-047-100 | DN100 | PN16 | 190 | 339 | 25.90 |
| 02-047-125 | DN125 | PN16 | 200 | 376 | 32.90 |
| 02-047-150 | DN150 | PN16 | 210 | 438 | 45.60 |
| 02-047-200 | DN200 | PN16 | 230 | 512 | 62.30 |
| 02-047-250 | DN250 | PN16 | 250 | 611 | 89.20 |
| 02-047-300 | DN300 | PN16 | 270 | 686 | 119.60 |
