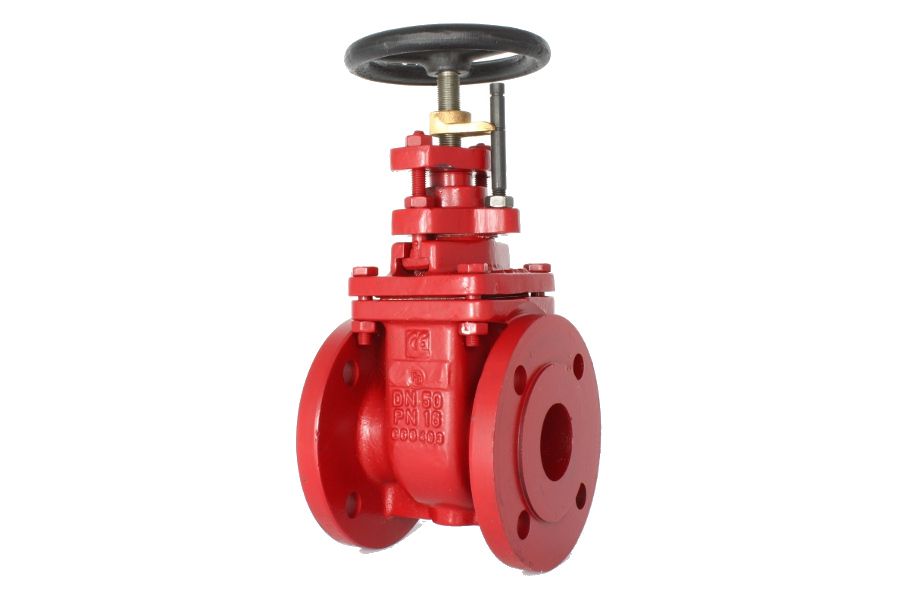

Flange wedge gate valve, 02-029
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 120°C |
- Indicator
- Non-rising stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 02-029-40 | DN40 | PN16 | 140 | 265 | 150 | 11.50 |
| 02-029-50 | DN50 | PN16 | 150 | 270 | 165 | 12.80 |
| 02-029-65 | DN65 | PN16 | 170 | 295 | 185 | 18.00 |
| 02-029-80 | DN80 | PN16 | 180 | 325 | 200 | 21.50 |
| 02-029-100 | DN100 | PN16 | 190 | 365 | 220 | 26.50 |
| 02-029-125 | DN125 | PN16 | 200 | 440 | 250 | 41.50 |
| 02-029-150 | DN150 | PN16 | 210 | 490 | 285 | 52.00 |
| 02-029-200 | DN200 | PN16 | 230 | 610 | 340 | 81.00 |
| 02-029-250 | DN250 | PN16 | 250 | 730 | 395 | 123.00 |
| 02-029-300 | DN300 | PN16 | 270 | 850 | 445 | 165.00 |
| 02-029-350 | DN350 | PN16 | 290 | 950 | 505 | 222.00 |
| 02-029-400 | DN400 | PN16 | 310 | 1025 | 565 | 281.00 |
| 02-029-500 | DN500 | PN16 | 350 | 1280 | 670 | 445.00 |
| 02-029-600 | DN600 | PN16 | 390 | 1475 | 780 | 610.00 |
