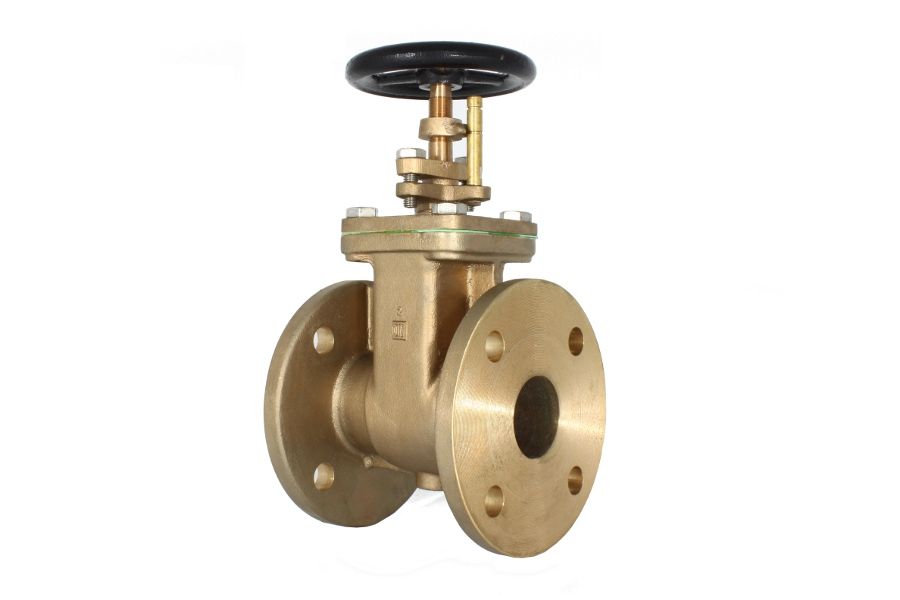

Flange wedge gate valve, 02-021
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Zincfree bronze |
| Inner Parts | Bronze |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 180°C |
- Indicator
- Non-rising stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 02-021-25 | DN25 | PN16 | 125 | 170 | 115 | 5.50 |
| 02-021-32 | DN32 | PN16 | 130 | 185 | 140 | 7.80 |
| 02-021-40 | DN40 | PN16 | 140 | 240 | 150 | 10.50 |
| 02-021-50 | DN50 | PN16 | 150 | 255 | 165 | 12.00 |
| 02-021-65 | DN65 | PN16 | 170 | 295 | 185 | 17.00 |
| 02-021-80 | DN80 | PN16 | 180 | 315 | 200 | 21.00 |
| 02-021-100 | DN100 | PN16 | 190 | 345 | 220 | 28.00 |
| 02-021-125 | DN125 | PN16 | 200 | 400 | 250 | 36.00 |
| 02-021-150 | DN150 | PN16 | 210 | 430 | 285 | 46.00 |
| 02-021-200 | DN200 | PN16 | 230 | 530 | 340 | 62.00 |
| 02-021-250 | DN250 | PN16 | 250 | 635 | 395 | 96.00 |
| 02-021-300 | DN300 | PN16 | 270 | 725 | 445 | 140.00 |
