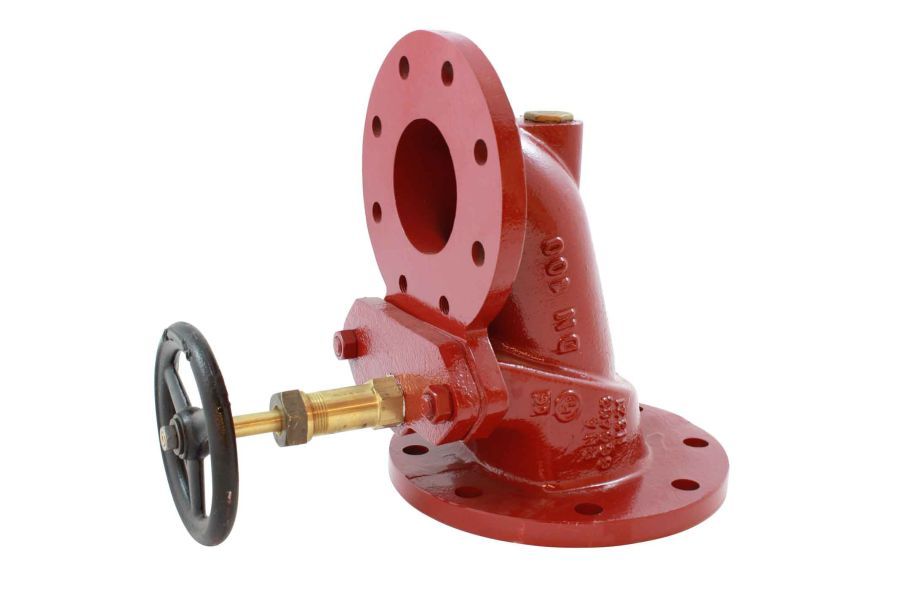

Flange storm valve, 04-010.1
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
- Locking device
| Art. Nr. | DN | PN | L | ØD | kg |
| 04-010.1-50-x-80 | DN50x80 | 180 | 165 | 13.00 | |
| 04-010.1-65-x-100 | DN65x100 | 200 | 185 | 15.00 | |
| 04-010.1-80-x-125 | DN80x125 | 215 | 200 | 28.00 | |
| 04-010.1-100-x-150 | DN100x150 | 260 | 220 | 35.00 | |
| 04-010.1-125-x-175 | DN125x175 | 290 | 250 | 45.00 | |
| 04-010.1-150-x-200 | DN150x200 | 330 | 285 | 55.00 | |
| 04-010.1-200-x-250 | DN200x250 | 425 | 340 | 72.00 |
