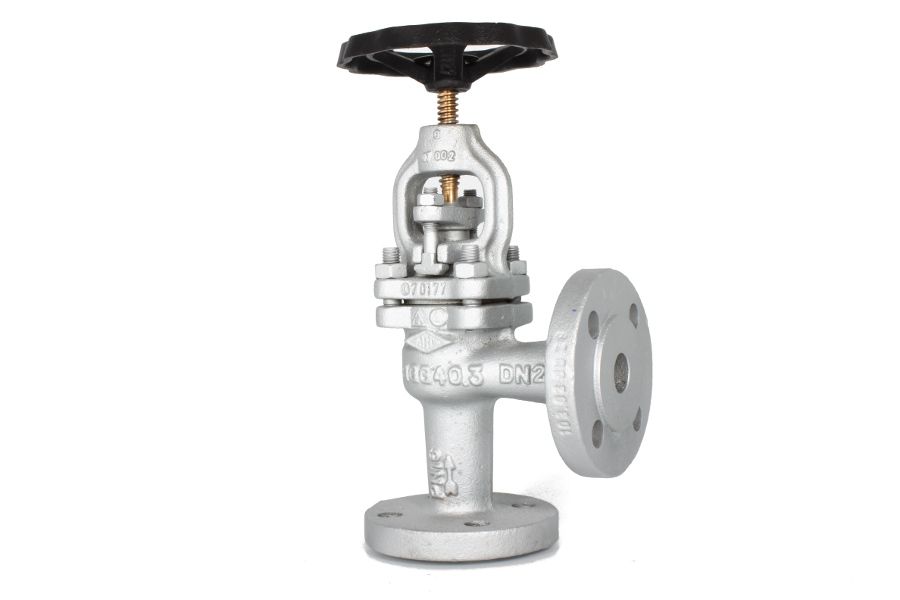

Flange SDNR-Valve, 01-404
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Loose plug/spring
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-404-15 | DN15 | PN16 | 90 | 159 | 95 | 4.00 |
| 01-404-20 | DN20 | PN16 | 95 | 159 | 105 | 4.50 |
| 01-404-25 | DN25 | PN16 | 100 | 178 | 115 | 5.60 |
| 01-404-32 | DN32 | PN16 | 105 | 178 | 140 | 6.60 |
| 01-404-40 | DN40 | PN16 | 115 | 221 | 150 | 9.20 |
| 01-404-50 | DN50 | PN16 | 125 | 229 | 165 | 11.60 |
| 01-404-65 | DN65 | PN16 | 145 | 253 | 185 | 17.00 |
| 01-404-80 | DN80 | PN16 | 155 | 297 | 200 | 22.60 |
| 01-404-100 | DN100 | PN16 | 175 | 336 | 220 | 33.00 |
| 01-404-125 | DN125 | PN16 | 200 | 387 | 250 | 46.00 |
| 01-404-150 | DN150 | PN16 | 225 | 466 | 285 | 68.00 |
| 01-404-200 | DN200 | PN16 | 275 | 588 | 340 | 100.00 |
| 01-404-250 | DN250 | PN16 | 325 | 690 | 405 | 204.00 |
| 01-404-300 | DN300 | PN16 | 375 | 785 | 460 | 270.00 |
