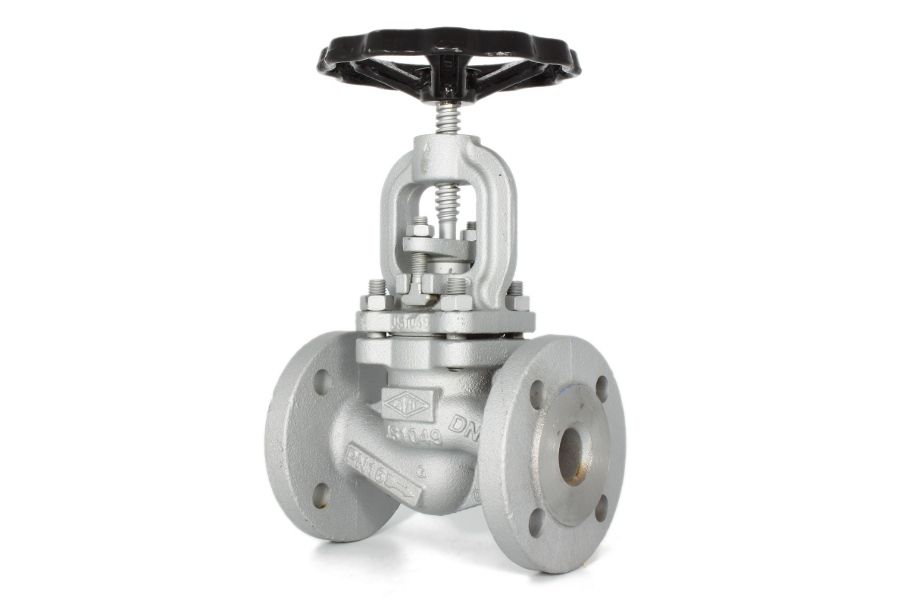

Flange SDNR-Valve, 01-396
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Loose plug/spring
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-396-15 | DN15 | PN16 | 130 | 189 | 95 | 3.90 |
| 01-396-20 | DN20 | PN16 | 150 | 189 | 105 | 4.30 |
| 01-396-25 | DN25 | PN16 | 160 | 203 | 115 | 5.40 |
| 01-396-32 | DN32 | PN16 | 180 | 203 | 140 | 7.00 |
| 01-396-40 | DN40 | PN16 | 200 | 246 | 150 | 9.50 |
| 01-396-50 | DN50 | PN16 | 230 | 254 | 165 | 12.90 |
| 01-396-65 | DN65 | PN16 | 290 | 293 | 185 | 18.40 |
| 01-396-80 | DN80 | PN16 | 310 | 322 | 200 | 24.50 |
| 01-396-100 | DN100 | PN16 | 350 | 381 | 220 | 36.00 |
| 01-396-125 | DN125 | PN16 | 400 | 427 | 250 | 56.00 |
| 01-396-150 | DN150 | PN16 | 480 | 521 | 285 | 78.00 |
| 01-396-200 | DN200 | PN10 | 600 | 643 | 340 | 122.00 |
| 01-396-250 | DN250 | PN10 | 730 | 780 | 395 | 247.00 |
| 01-396-300 | DN300 | PN10 | 850 | 890 | 445 | 336.00 |
