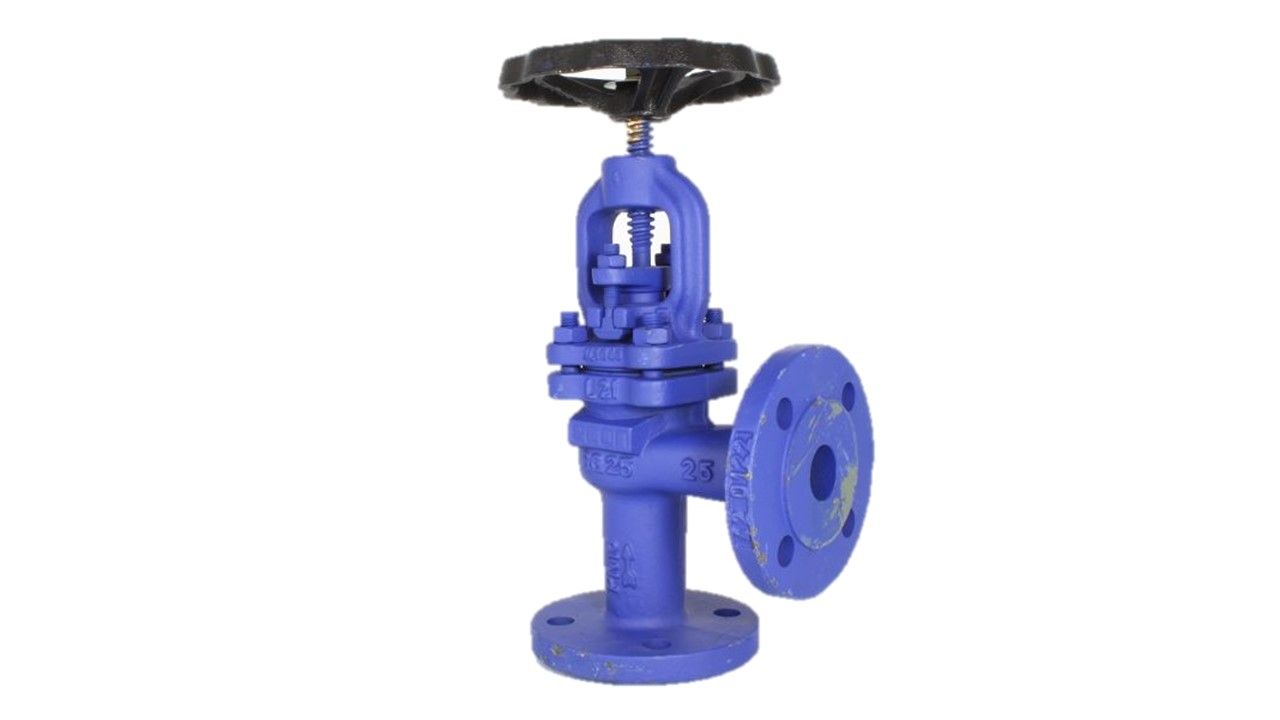

Flange SDNR-Valve, 01-389
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Gunmetal |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 225°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Loose plug/spring
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-389-15 | DN15 | PN16 | 90 | 159 | 95 | 3.90 |
| 01-389-20 | DN20 | PN16 | 95 | 159 | 105 | 4.50 |
| 01-389-25 | DN25 | PN16 | 100 | 178 | 115 | 5.50 |
| 01-389-32 | DN32 | PN16 | 105 | 178 | 140 | 6.60 |
| 01-389-40 | DN40 | PN16 | 115 | 221 | 150 | 9.10 |
| 01-389-50 | DN50 | PN16 | 125 | 229 | 165 | 11.50 |
| 01-389-65 | DN65 | PN16 | 145 | 253 | 185 | 17.10 |
| 01-389-80 | DN80 | PN16 | 155 | 297 | 200 | 22.40 |
| 01-389-100 | DN100 | PN16 | 175 | 336 | 220 | 32.00 |
| 01-389-125 | DN125 | PN16 | 200 | 387 | 250 | 46.00 |
| 01-389-150 | DN150 | PN16 | 225 | 466 | 285 | 67.00 |
| 01-389-200 | DN200 | PN10 | 275 | 588 | 340 | 126.00 |
| 01-389-250 | DN250 | PN10 | 325 | 690 | 395 | 184.00 |
| 01-389-300 | DN300 | PN10 | 375 | 785 | 445 | 270.00 |
