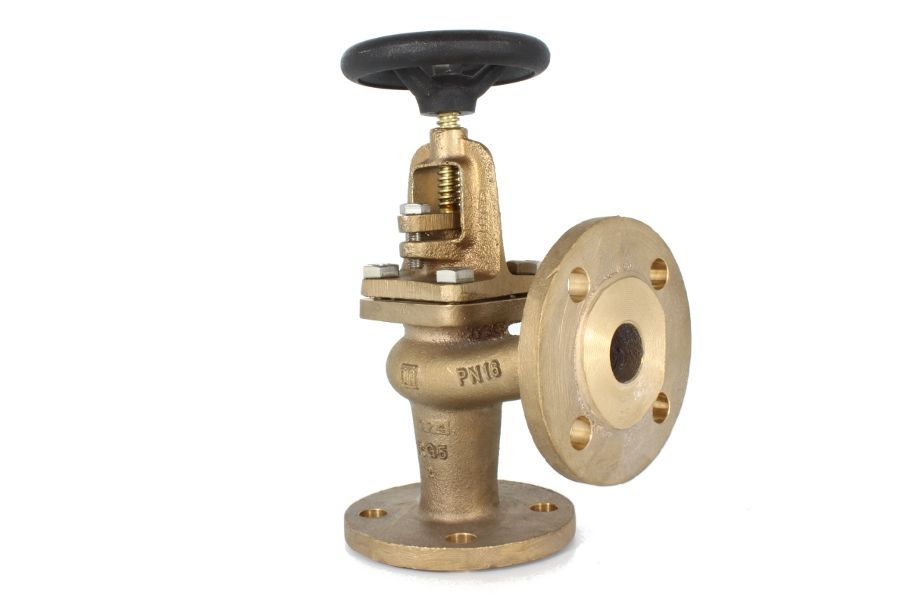

Flange SDNR-Valve, 01-373-1271LK
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 200°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Loose plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-373-1271LK-15 | DN15 | PN16 | 65 | 157 | 100 | 4.00 |
| 01-373-1271LK-20 | DN20 | PN16 | 65 | 175 | 100 | 5.50 |
| 01-373-1271LK-25 | DN25 | PN16 | 70 | 190 | 100 | 6.20 |
| 01-373-1271LK-32 | DN32 | PN16 | 90 | 205 | 120 | 8.40 |
| 01-373-1271LK-40 | DN40 | PN16 | 90 | 215 | 160 | 10.00 |
| 01-373-1271LK-50 | DN50 | PN16 | 105 | 235 | 160 | 12.80 |
| 01-373-1271LK-65 | DN65 | PN16 | 115 | 260 | 160 | 23.20 |
| 01-373-1271LK-80 | DN80 | PN16 | 125 | 265 | 200 | 31.00 |
| 01-373-1271LK-100 | DN100 | PN16 | 145 | 285 | 250 | 41.00 |
| 01-373-1271LK-125 | DN125 | PN16 | 170 | 310 | 250 | 65.00 |
| 01-373-1271LK-150 | DN150 | PN16 | 200 | 360 | 315 | 89.00 |
| 01-373-1271LK-200 | DN200 | PN10 | 250 | 440 | 315 | 127.00 |
