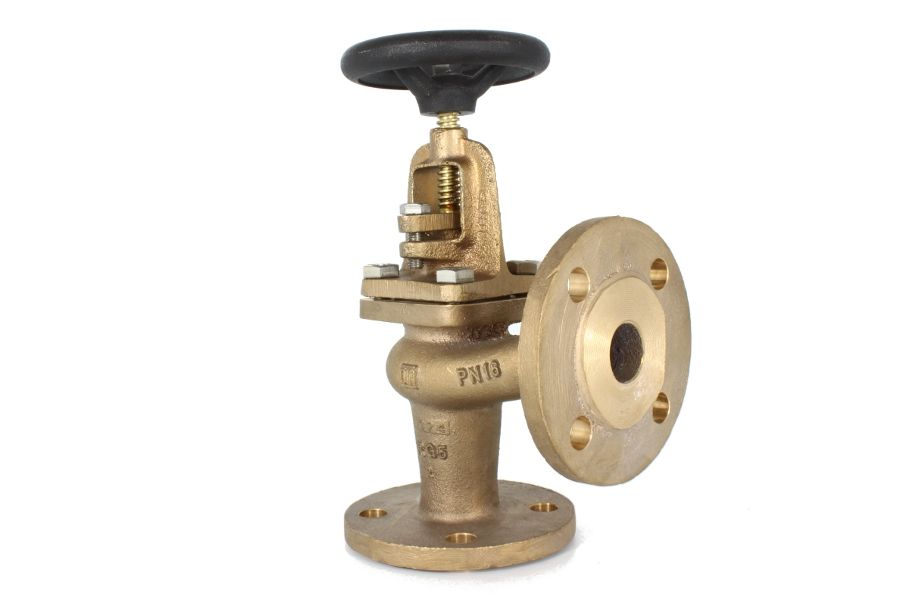

Flange SDNR-Valve, 01-373
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
- Bolted bonnet
- Gland seal
- Rising stem
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-373-15 | DN15 | PN16 | 90 | 160 | 95 | 3.80 |
| 01-373-20 | DN20 | PN16 | 95 | 170 | 105 | 4.00 |
| 01-373-25 | DN25 | PN16 | 100 | 170 | 115 | 5.00 |
| 01-373-32 | DN32 | PN16 | 105 | 190 | 140 | 7.00 |
| 01-373-40 | DN40 | PN16 | 115 | 210 | 150 | 9.00 |
| 01-373-50 | DN50 | PN16 | 125 | 220 | 165 | 11.00 |
| 01-373-65 | DN65 | PN16 | 145 | 260 | 185 | 16.00 |
| 01-373-80 | DN80 | PN16 | 155 | 280 | 200 | 20.00 |
| 01-373-100 | DN100 | PN16 | 175 | 300 | 220 | 25.00 |
| 01-373-125 | DN125 | PN16 | 200 | 340 | 250 | 40.00 |
| 01-373-150 | DN150 | PN10 | 225 | 360 | 285 | 50.00 |
| 01-373-200 | DN200 | PN10 | 275 | 440 | 340 | 95.00 |
| 01-373-250 | DN250 | PN06 | 325 | 550 | 395 | 155.00 |
| 01-373-300 | DN300 | PN06 | 375 | 620 | 445 | 225.00 |
