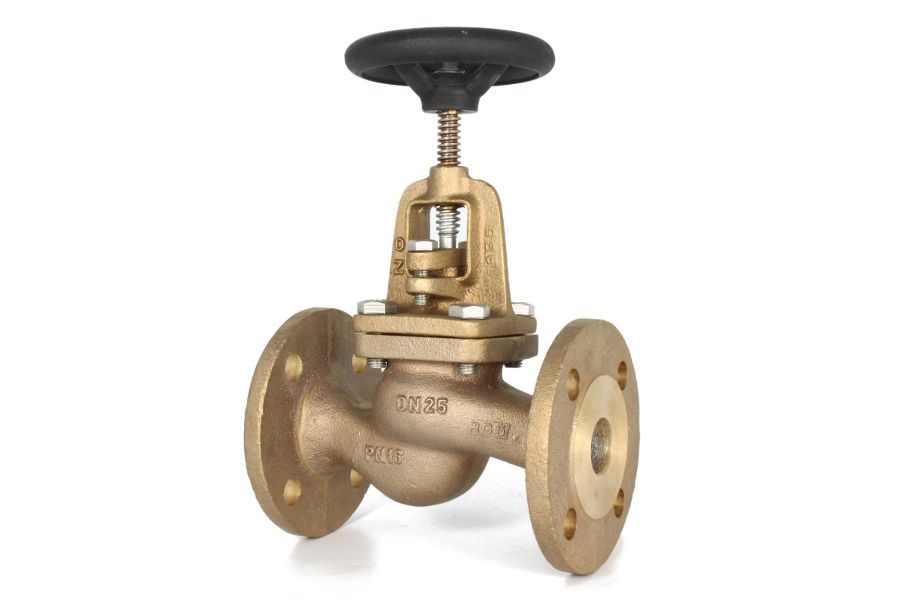

Flange SDNR-Valve, 01-363-1270LK
Additional information
| Connection Type | Flanges acc. to DIN PN10/16 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Special brass |
| Seat Sealing | Metallic |
| Temperature Range | -10°C to 200°C |
- Bolted bonnet
- Gland seal
- Rising stem
- Loose plug
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 01-363-1270LK-15 | DN15 | PN16 | 120 | 166 | 100 | 4.30 |
| 01-363-1270LK-20 | DN20 | PN16 | 120 | 178 | 100 | 5.00 |
| 01-363-1270LK-25 | DN25 | PN16 | 140 | 200 | 100 | 6.00 |
| 01-363-1270LK-32 | DN32 | PN16 | 150 | 215 | 120 | 8.70 |
| 01-363-1270LK-40 | DN40 | PN16 | 155 | 235 | 160 | 10.00 |
| 01-363-1270LK-50 | DN50 | PN16 | 180 | 250 | 160 | 13.20 |
| 01-363-1270LK-65 | DN65 | PN16 | 200 | 300 | 160 | 23.00 |
| 01-363-1270LK-80 | DN80 | PN16 | 240 | 305 | 200 | 31.90 |
| 01-363-1270LK-100 | DN100 | PN16 | 270 | 335 | 250 | 42.80 |
| 01-363-1270LK-125 | DN125 | PN16 | 320 | 390 | 250 | 62.00 |
| 01-363-1270LK-150 | DN150 | PN16 | 370 | 435 | 315 | 88.00 |
| 01-363-1270LK-200 | DN200 | PN10 | 500 | 620 | 315 | 136.00 |
