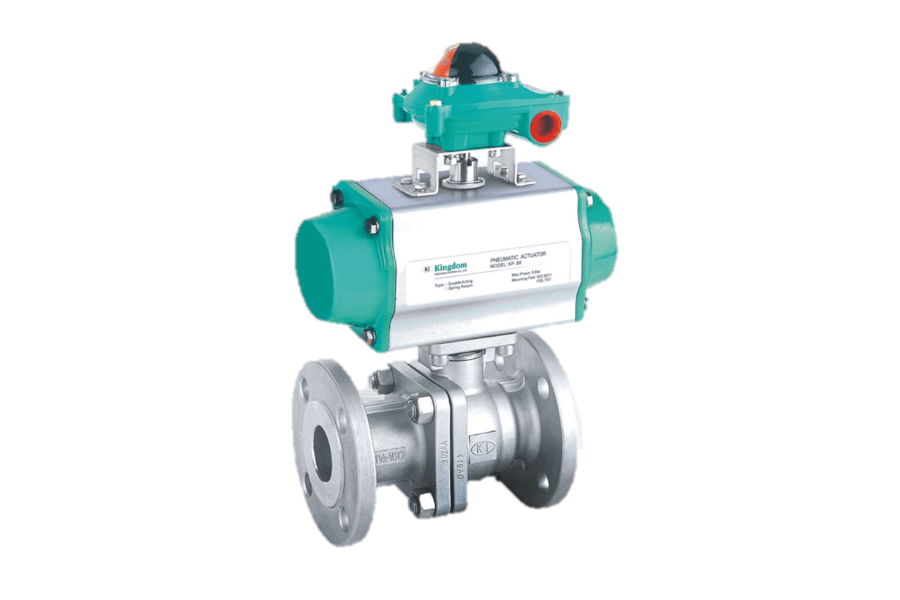

Fire-Safe-Ball-Valves, 03-512-TAFS
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/40 |
|---|
- Two-part
- Overall length according to EN 558, GR. 1 and GR. 27
- With head flange to DIN EN ISO 5211, for direct mounting of drives
- TA-Luft certified according to VDI 2440
- Fire-Safe according to API 670 and DIN EN ISO 10497
- Anti-Static spindle
- 3.1 Inspection certificate according to DIN EN ISO 10204
- Available with electric and pneumatic
- Actuators and manually operated with limit position switches
| Art. Nr. | DN | PN |
| 03-512-TAFS-015 | DN015 | PN40/PN16 |
| 03-512-TAFS-020 | DN020 | PN40/PN16 |
| 03-512-TAFS-025 | DN025 | PN40/PN16 |
| 03-512-TAFS-032 | DN032 | PN40/PN16 |
| 03-512-TAFS-040 | DN040 | PN40/PN16 |
| 03-512-TAFS-050 | DN050 | PN40/PN16 |
| 03-512-TAFS-065 | DN065 | PN40/PN16 |
| 03-512-TAFS-080 | DN080 | PN40/PN16 |
| 03-512-TAFS-0100 | DN100 | PN40/PN16 |
