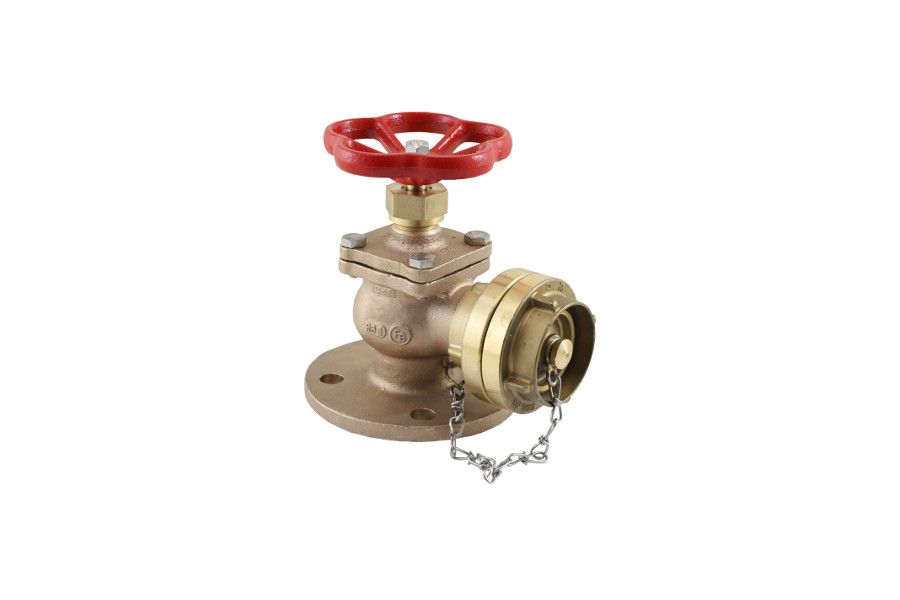

Fire Globe Valve (Hose Connection Valve), 06-003
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Special brass |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
- Screw lock disc
- Storz fix- and blind-coupling
- LR type approval
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 06-003-50-40 | DN50 | PN16 | 132 | 235 | 140 | 7.20 |
| 06-003-50-50 | DN50 | PN16 | 132 | 235 | 140 | 7.40 |
| 06-003-65 | DN65 | PN16 | 155 | 265 | 160 | 11.60 |
