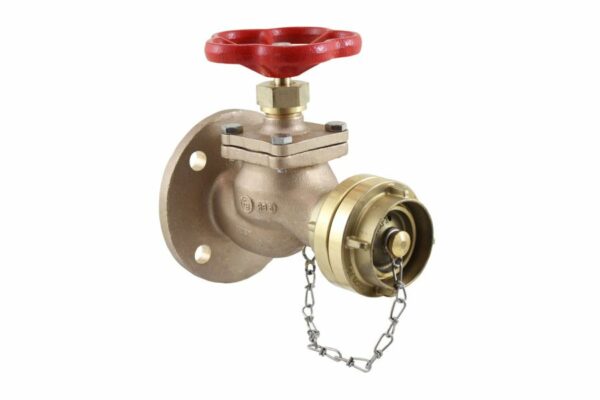

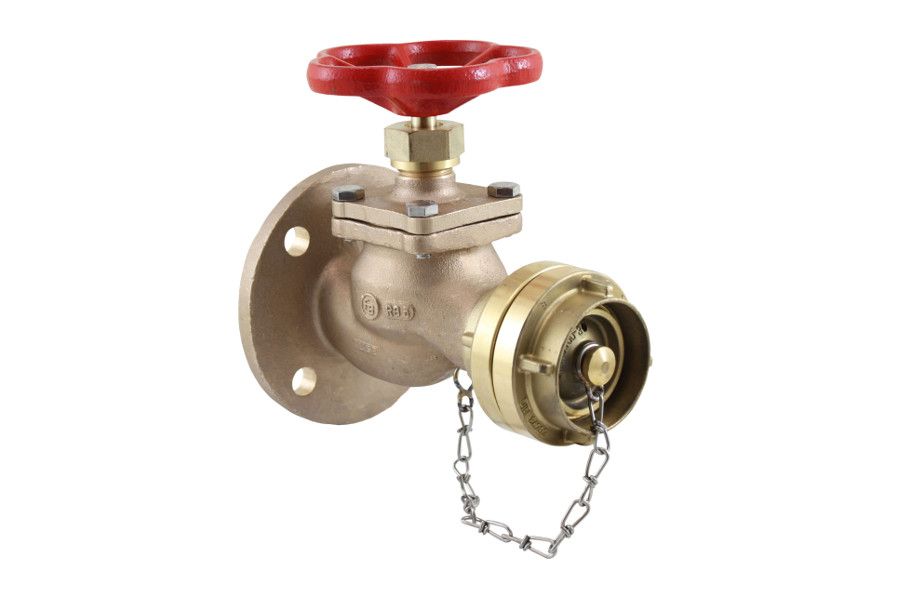

Fire Globe Valve (Hose Connection Valve), 06-001
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Gunmetal |
| Inner Parts | Brass |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
- Screw lock disc
- Storz fix- and blind-coupling
- LR type approval
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 06-001-50-40 | DN50 | PN16 | 222 | 175 | 140 | 8.00 |
| 06-001-50-50 | DN50 | PN16 | 222 | 175 | 140 | 8.20 |
| 06-001-65 | DN65 | PN16 | 260 | 205 | 160 | 12.40 |
