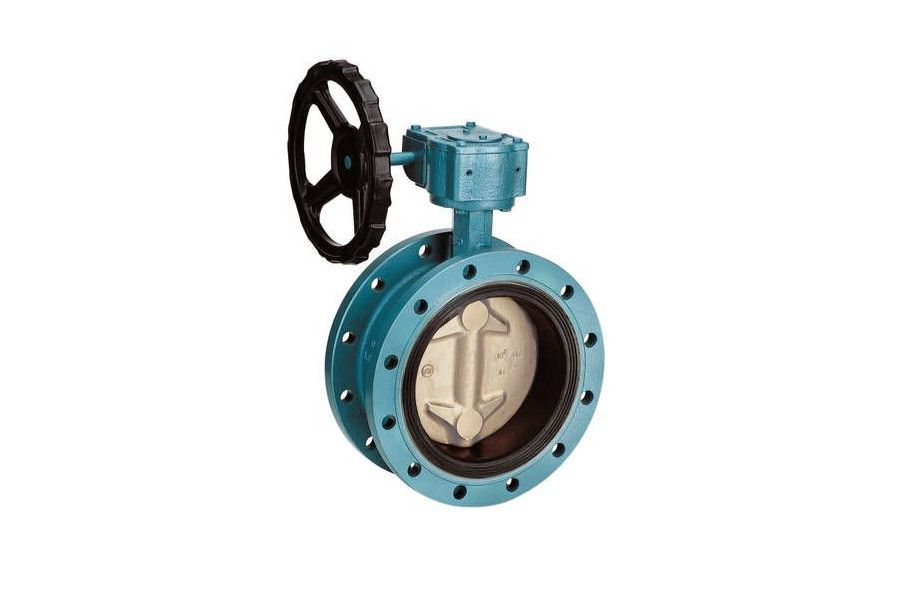

Double Flanged Butterfly Valve, 04-030.1N
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | AISI316 |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Art. Nr. | DN | PN | L | H | ØD | kg |
| 04-030.1N-50 | DN50 | PN10 | 108 | 215 | 165 | 11.20 |
| 04-030.1N-65 | DN65 | PN10 | 112 | 223 | 185 | 12.00 |
| 04-030.1N-80 | DN80 | PN10 | 114 | 246 | 200 | 13.60 |
| 04-030.1N-100 | DN100 | PN10 | 127 | 256 | 229 | 17.50 |
| 04-030.1N-125 | DN125 | PN10 | 140 | 269 | 254 | 25.40 |
| 04-030.1N-150 | DN150 | PN10 | 140 | 332 | 285 | 31.30 |
| 04-030.1N-200 | DN200 | PN10 | 152 | 357 | 343 | 41.40 |
| 04-030.1N-250 | DN250 | PN10 | 165 | 395 | 406 | 64.00 |
| 04-030.1N-300 | DN300 | PN10 | 178 | 449 | 483 | 87.70 |
| 04-030.1N-350 | DN350 | PN10 | 190 | 490 | 533 | 113.30 |
| 04-030.1N-400 | DN400 | PN10 | 216 | 591 | 597 | 158.00 |
| 04-030.1N-500 | DN500 | PN10 | 229 | 718 | 710 | 263.50 |
| 04-030.1N-600 | DN600 | PN10 | 267 | 857 | 840 | 348.00 |
| 04-030.1N-700 | DN700 | PN10 | 292 | 876 | 920 | 472.00 |
