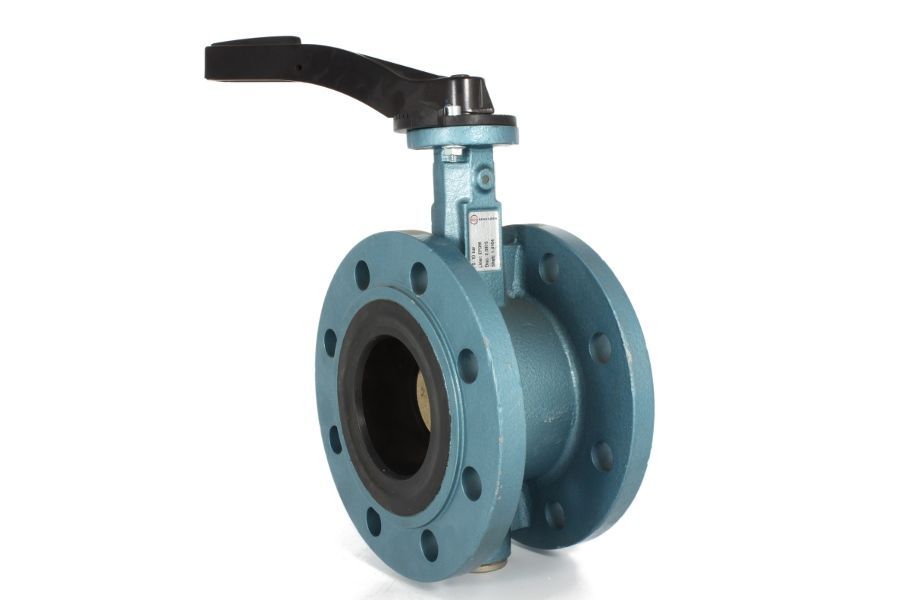

Double Flanged Butterfly Valve, 04-028N-C
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | L | H | ØD |
| 04-028N-C-50 | DN50 | PN10/16 | 108 | 171 | 90 |
| 04-028N-C-65 | DN65 | PN10/16 | 112 | 191 | 90 |
| 04-028N-C-80 | DN80 | PN10/16 | 114 | 218 | 90 |
| 04-028N-C-100 | DN100 | PN10/16 | 127 | 246 | 90 |
| 04-028N-C-125 | DN125 | PN10/16 | 140 | 263 | 90 |
| 04-028N-C-150 | DN150 | PN10/16 | 140 | 302 | 90 |
| 04-028N-C-200 | DN200 | PN10/16 | 152 | 368 | 90 |
