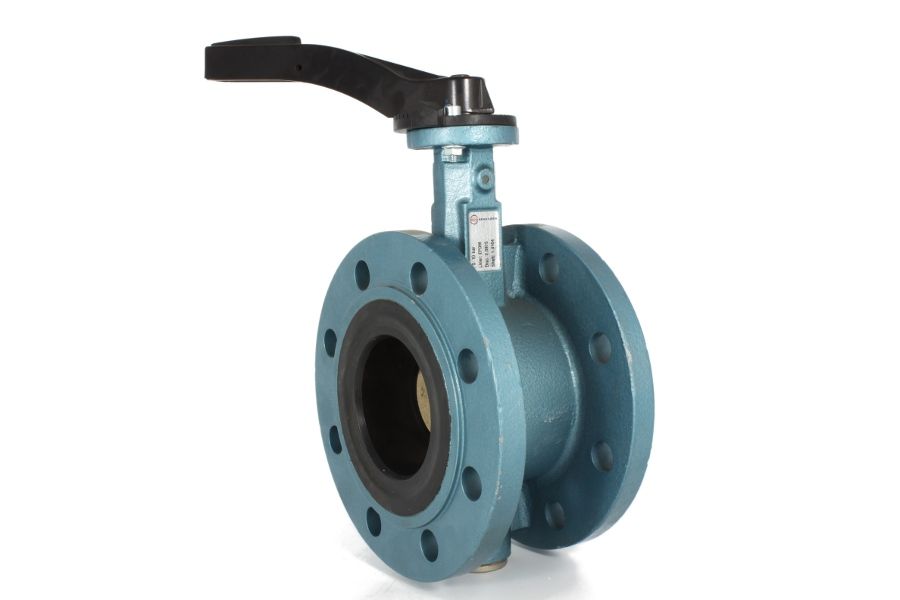

Double Flanged Butterfly Valve, 04-028N
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | L | H | ØD | Kg |
| 04-028N-50 | DN50 | PN10 | 155 | 196 | 165 | 9.40 |
| 04-028N-65 | DN65 | PN10 | 155 | 204 | 185 | 10.20 |
| 04-028N-80 | DN80 | PN10 | 195 | 237 | 200 | 12.35 |
| 04-028N-100 | DN100 | PN10 | 195 | 247 | 229 | 16.25 |
| 04-028N-125 | DN125 | PN10 | 195 | 260 | 254 | 24.15 |
| 04-028N-150 | DN150 | PN10 | 276 | 303 | 285 | 29.50 |
| 04-028N-200 | DN200 | PN10 | 276 | 328 | 343 | 39.60 |
