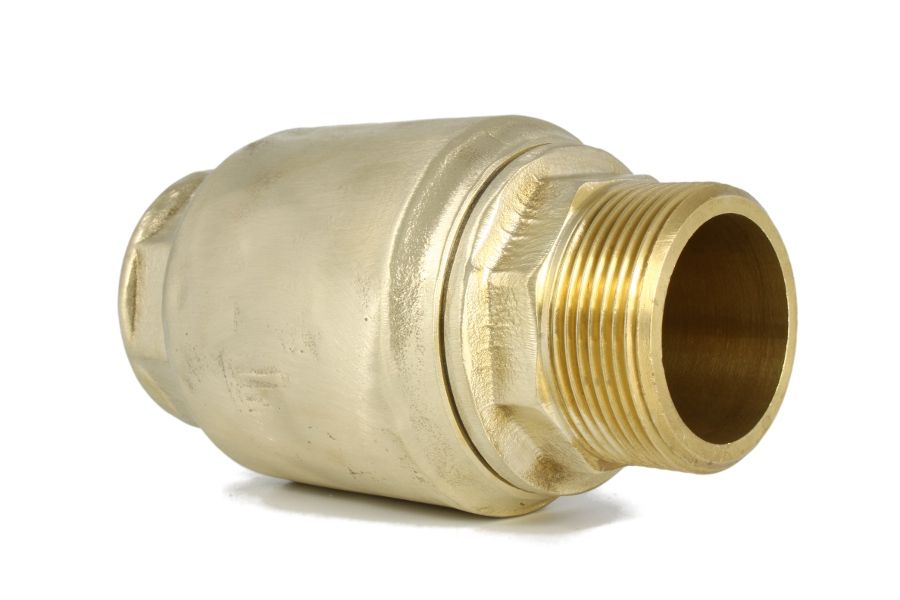

Check Valve, 01-660
Additional information
| Connection Type | Thread acc. to DIN ISO 228 |
|---|---|
| Material Body | Brass |
| Inner Parts | Rubber Ball |
| Temperature Range | 0°C to 80°C |
- Rubber ball
- Male and female thread
- Vertical installation
| Art. Nr. | DN | PN | H | ØD | Kg |
| 01-660-3/4 | G3/4 | PN6 | 80 | 45 | 0.35 |
| 01-660-1 | G1 | PN6 | 92 | 52 | 0.47 |
| 01-660-11/4 | G1-1/4 | PN6 | 110 | 62 | 0.82 |
| 01-660-11/2 | G1-1/2 | PN6 | 125 | 73 | 1.20 |
| 01-660-2 | G2 | PN6 | 144 | 88 | 1.80 |
