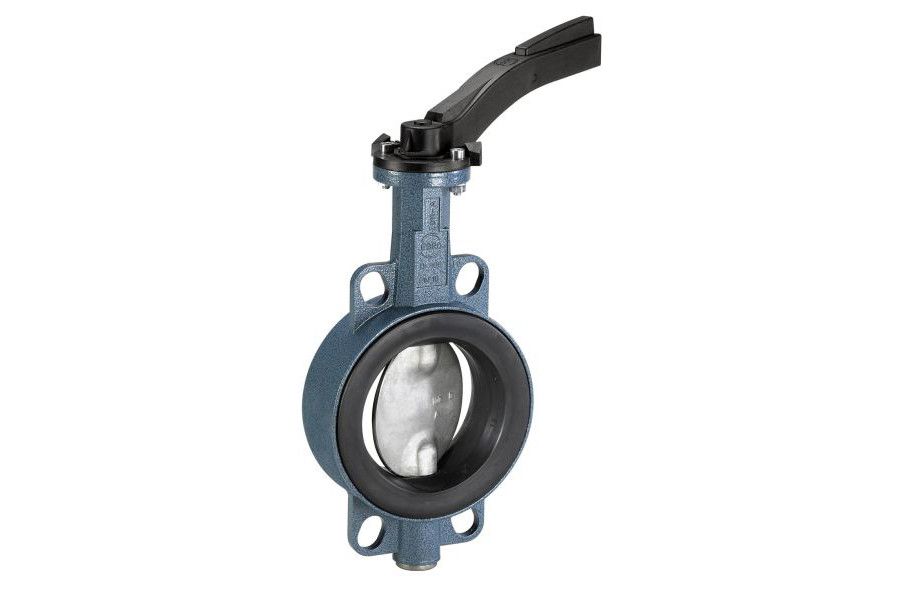

Butterfly Valve Wafer Type, 04-052N
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Cast iron |
| Inner Parts | Stainless steel |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Art. Nr. | DN | PN | L | H | ØD | Kg |
| 04-052N-20 | DN20 | PN10 | 155 | 174 | 59 | 1.40 |
| 04-052N-25 | DN25 | PN10 | 155 | 174 | 63 | 1.40 |
| 04-052N-32 | DN32 | PN10 | 155 | 174 | 68 | 1.50 |
| 04-052N-40 | DN40 | PN10 | 155 | 183 | 80 | 1.90 |
| 04-052N-50 | DN50 | PN10 | 155 | 196 | 95 | 2.30 |
| 04-052N-65 | DN65 | PN10 | 155 | 204 | 115 | 3.00 |
| 04-052N-80 | DN80 | PN10 | 195 | 237 | 138 | 4.20 |
| 04-052N-100 | DN100 | PN10 | 195 | 247 | 158 | 5.40 |
| 04-052N-125 | DN125 | PN10 | 195 | 260 | 188 | 7.10 |
| 04-052N-150 | DN150 | PN10 | 276 | 303 | 212 | 10.00 |
| 04-052N-200 | DN200 | PN10 | 276 | 328 | 268 | 13.70 |
