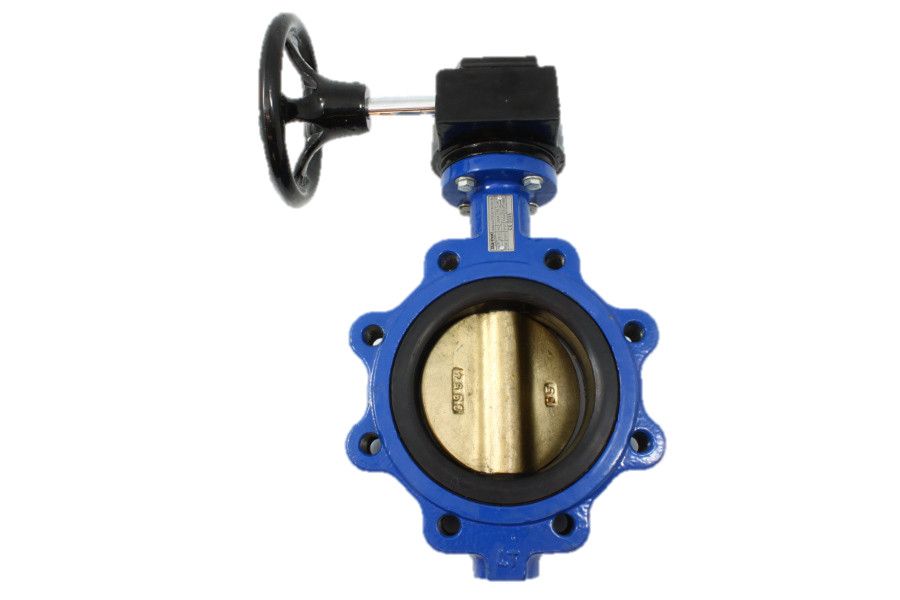

Butterfly Valve Lug Type, 04-023N-C
Additional information
| Connection Type | Flanges acc. to EN 1092-2 PN10 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | L | H | ØD | Kg |
| 04-023NC-50 | DN50 | PN10 | 43 | 204 | 90 | 8.60 |
| 04-023NC-65 | DN65 | PN10 | 46 | 223 | 90 | |
| 04-023NC-80 | DN80 | PN10 | 46 | 236 | 90 | |
| 04-023NC-100 | DN100 | PN10 | 52 | 270 | 90 | 10.40 |
| 04-023NC-125 | DN125 | PN10 | 56 | 295 | 90 | 13.30 |
| 04-023NC-150 | DN150 | PN10 | 56 | 324 | 90 | 14.60 |
| 04-023NC-200 | DN200 | PN10 | 60 | 388 | 90 | 26.30 |
| 04-023NC-250 | DN250 | PN10 | 68 | 464 | 125 | 33.20 |
| 04-023NC-300 | DN300 | PN10 | 78 | 538 | 125 | 54.00 |
| 04-023NC-350 | DN350 | PN10 | 78 | 635 | 150 | 76.00 |
| 04-023NC-400 | DN400 | PN10 | 102 | 724 | 150 | 111.00 |
| 04-023NC-450 | DN450 | PN10 | 114 | 765 | 175 | 131.00 |
| 04-023NC-500 | DN500 | PN10 | 127 | 854 | 175 | 158.00 |
| 04-023NC-600 | DN600 | PN10 | 154 | 997 | 210 | 284.00 |
