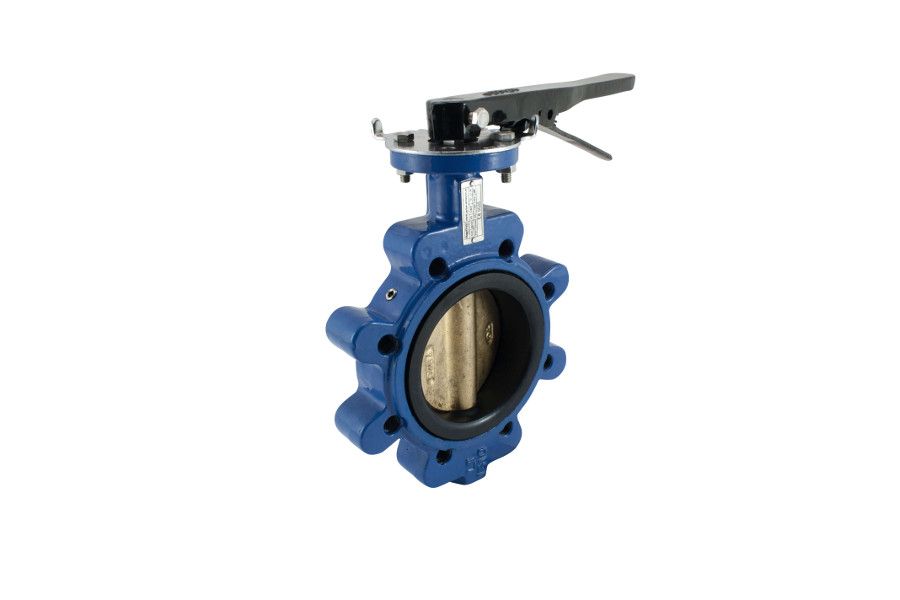

Butterfly Valve Lug Type, 04-022NC
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10 |
|---|---|
| Material Body | Nodular cast iron GGG40 |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Lubrication oil, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | L | H | ØD | Kg |
| 04-022NC-40 | DN40 | PN10 | 261,5 | 195 | 90 | 3.50 |
| 04-022NC-50 | DN50 | PN10 | 261,5 | 204 | 90 | 4.20 |
| 04-022NC-65 | DN65 | PN10 | 261,5 | 223 | 90 | 4.80 |
| 04-022NC-80 | DN80 | PN10 | 261,5 | 236 | 90 | 5.10 |
| 04-022NC-100 | DN100 | PN10 | 261,5 | 270 | 90 | 7.10 |
| 04-022NC-125 | DN125 | PN10 | 261,5 | 295 | 90 | 10.00 |
| 04-022NC-150 | DN150 | PN10 | 261,5 | 324 | 90 | 10.60 |
| 04-022NC-200 | DN200 | PN10 | 364 | 388 | 125 | 19.20 |
| 04-022NC-250 | DN250 | PN10 | 364 | 464 | 125 | 29.20 |
| 04-022NC-300 | DN300 | PN10 | 364 | 538 | 150 | 44.80 |
