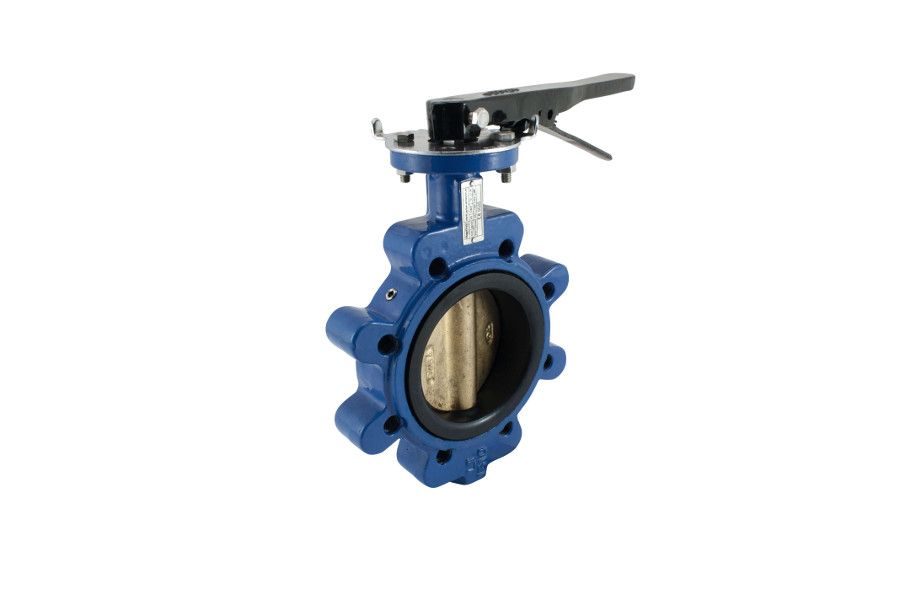

Butterfly Valve Lug Type, 04-022N
Additional information
| Connection Type | Flanges acc. to DIN EN 1092 PN10/16 |
|---|---|
| Material Body | Nodular cast iron |
| Inner Parts | Aluminium bronze |
| Seat Sealing | NBR |
| Temperature Range | -10°C to 80°C |
| Application Range | Neutral gases, Seawater, Cold and warm water |
| Art. Nr. | DN | PN | L | H | ØD | Kg |
| 04-022N-20 | DN20 | PN10 | 155 | 174 | 63 | 2.20 |
| 04-022N-25 | DN25 | PN10 | 155 | 174 | 63 | 2.20 |
| 04-022N-32 | DN32 | PN10 | 155 | 174 | 68 | 2.20 |
| 04-022N-100 | DN100 | PN10 | 52 | 256 | 158 | 6.60 |
| 04-022N-40 | DN40 | PN10 | 155 | 183 | 80 | 4.10 |
| 04-022N-50 | DN50 | PN10 | 155 | 196 | 95 | 4.90 |
| 04-022N-65 | DN65 | PN10 | 155 | 204 | 115 | 5.60 |
| 04-022N-80 | DN80 | PN10 | 195 | 237 | 138 | 8.75 |
| 04-022N-100 | DN100 | PN10 | 195 | 247 | 158 | 9.95 |
| 04-022N-125 | DN125 | PN10 | 195 | 260 | 188 | 10.25 |
| 04-022N-150 | DN150 | PN10 | 276 | 303 | 210 | 13.60 |
| 04-022N-200 | DN200 | PN10 | 276 | 328 | 268 | 19.30 |
