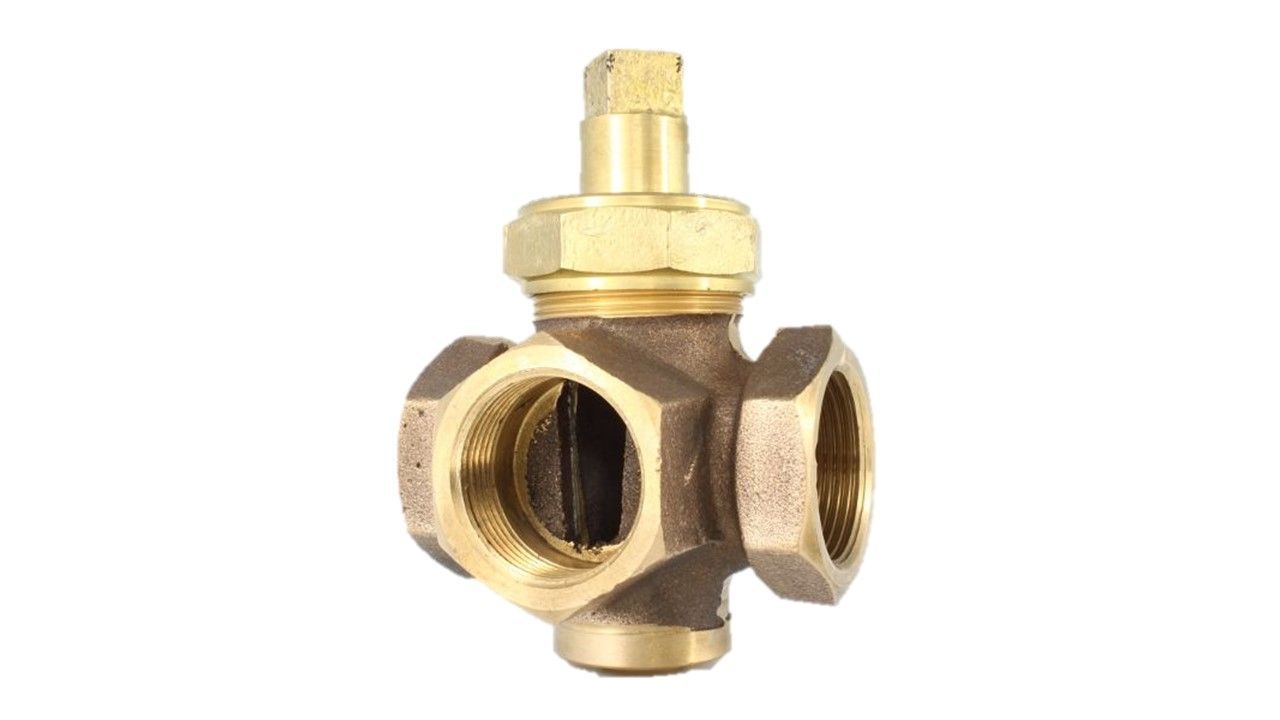

3-way-cock female thread, 03-077
Additional information
| Material Body | Gunmetal |
|---|---|
| Inner Parts | Gunmetal |
| Temperature Range | 0°C to 80°C |
- Gland packing
- T-port
| Art. Nr. | DN | PN | L | H | kg |
| 03-077-3/8 | G3/8 | PN16 | 45 | 60 | 0.30 |
| 03-077-1/2 | G1/2 | PN16 | 55 | 68 | 0.60 |
| 03-077-3/4 | G3/4 | PN16 | 65 | 77 | 0.80 |
| 03-077-1 | G1 | PN16 | 80 | 90 | 1.40 |
| 03-077-11/4 | G1-1/4 | PN16 | 90 | 100 | 2.20 |
| 03-077-11/2 | G1-1/2 | PN16 | 110 | 120 | 3.60 |
| 03-077-2 | G2 | PN16 | 135 | 138 | 5.10 |
| 03-077-21/2 | G2-1/2 | PN16 | 150 | 150 | 8.50 |
| 03-077-3 | G3 | PN16 | 175 | 175 | 13.20 |
